Samsung NP N310 HAA2US Hard Drive Replacement

Geschrieben von: Amir Afridi
  • Kommentare: 0
Samsung NP N310 HAA2US Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 - 20 Minuten

Einleitung

Replace or upgrade your Samsung NP N310 HAA2US hard drive with any compatible hard drive. A new hard drive can give a user more space and also provide better performance.

  1. vHun5GYtmCFIoEco
    vHun5GYtmCFIoEco
    CVSUTYTyCmKsNdsM
    yl3ACYNtLenTkxR6

    • Make sure the laptop is powered off, and unplugged before removing the battery.

    • Slide the battery switch to the unlock symbol, and the battery will pop up.

    • Remove the battery.

  2. d3OAutWkQuLNCjOW
    d3OAutWkQuLNCjOW
    LH16toTqWuKkD5rh

    • Locate, and unscrew the 11 Phillips 8mm back cover screws, and 1 Phillips 5mm screw on the RAM cover. Use a #1 Philips screw driver to remove the screws.

    • If there are rubber pads covering the screws, use a spudger to remove the rubber pads.

  3. BtDVNRWTMPDRAgth
    BtDVNRWTMPDRAgth
    fRRHaenohR4nFPML
    ao1UOjd3XpJOrNX3

    • Insert the plastic opening tool in the break between the back panel, and the keyboard.

    • Drag the opening tool around the edge to separate it.

    • Pull the back panel off of the laptop.

  4. DBcdLkdWLXWhDokS
    DBcdLkdWLXWhDokS
    DgJqPg5Ey1nQRZnp
    4kmRQXMLXtA4MvoV

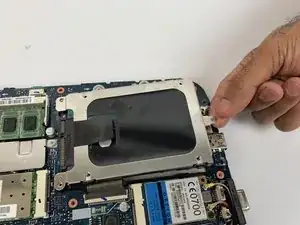

    • Unscrew the 3 Phillips 3.5 mm screws. Use a size 1 Phillips screwdriver.

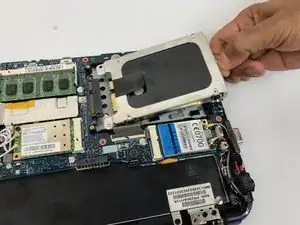

    • Lift the hardrive.

    • Pull the hard drive out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
