Samsung NP N310 HAA2US RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

1 - 2 Minuten

Einleitung

Accessing the RAM in this laptop is straightforward and requires minimal disassembly. You can upgarde the ram for better performance. One RAM slot allows up to 2 GB of DDR2 PC2-5300 667MHz 200-pin SODIMM

  1. vHun5GYtmCFIoEco
    vHun5GYtmCFIoEco
    CVSUTYTyCmKsNdsM
    yl3ACYNtLenTkxR6

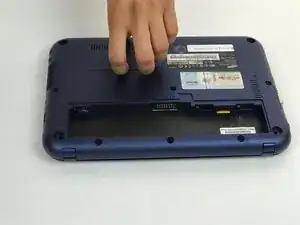

    • Make sure the laptop is powered off, and unplugged before removing the battery.

    • Slide the battery switch to the unlock symbol, and the battery will pop up.

    • Remove the battery.

  2. YhAq3JgeArtNIKVS
    YhAq3JgeArtNIKVS
    umrqonNbdQ2KFyF2
    ddIElp2kZnypWMcE

    • Locate and unscrew the 5mm screw on the small panel on the back that has 'memory' written on it.

    • Pull off the memory panel.

  3. kiyuQPHdxlSmKodF
    kiyuQPHdxlSmKodF
    sZrsNMFBKLawtfN2
    oFgbWdIwE2HReMuV

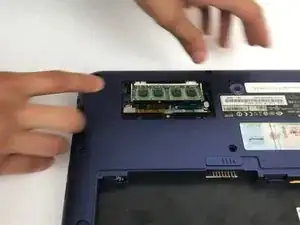

    • Pull the 2 latches holding the RAM in, away from the RAM stick, and the RAM will pop up.

    • Pull the RAM out of the slot, only touching the edges of the RAM stick

Abschluss

To reassemble your device, follow these instructions in reverse order.
