Einleitung

The RAM chip in laptops does have the possibility of failure after prolonged use, but replacement in most cases involves a defective RAM chip originally being installed.

  1. sgmlXgEePFHUZMJW
    • Use a Phillips #0 screwdriver, take out the 4.6mm screw holding the RAM slot down.

  2. NLFcMA2SCBoO3OCK
    NLFcMA2SCBoO3OCK
    rBFrYwYL1WZALseJ

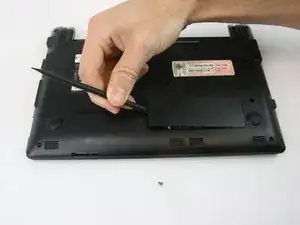

    • Insert the flat end of the black spudger into the small notch in the RAM slot and lift the top off.

  3. dVRaLN4m15e6lVk2
    dVRaLN4m15e6lVk2
    vxfCrjCQjLers55s

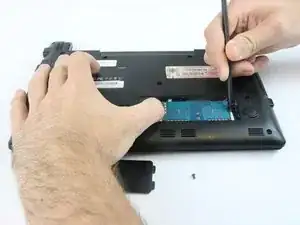

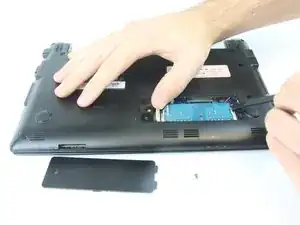

    • Now that the RAM chip has been exposed, use your fingertip and the black spudger to push back the metal tabs on each side, allowing the RAM chip to come free.

  4. TBKZAIAPTJOsY6Od
    TBKZAIAPTJOsY6Od
    Vse2ngKV45435FrS

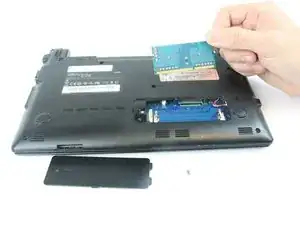

    • Finally, use the black spudger to get underneath the loosened RAM chip and gently pull it up and out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
