Einleitung

  1. VLdTqK1L6KMGDyWx
    VLdTqK1L6KMGDyWx
    eZrD4VIKxj4GlSWn
    yjC2tp21UTgTVwvb
    • Place the laptop face-down on a stable surface.

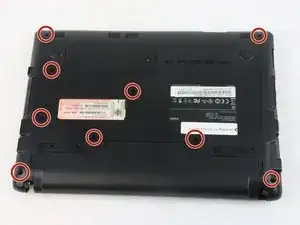

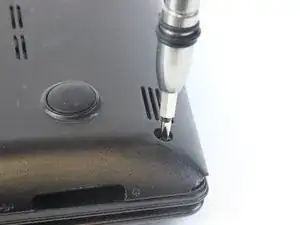

    • Remove the nine 6.5mm Phillips #0 screws shown.

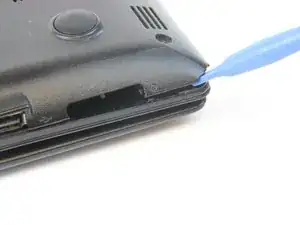

    • Use the blue opening tool to gently pry the back of the laptop off of the body.

  2. AIsJrJUCPEFYrcGK
    AIsJrJUCPEFYrcGK
    4X1q4HRiBMLV26Ud
    rqAIrtfetsGY5QD4

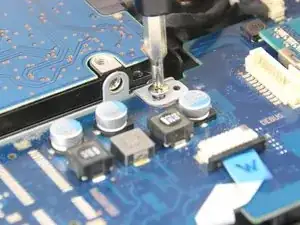

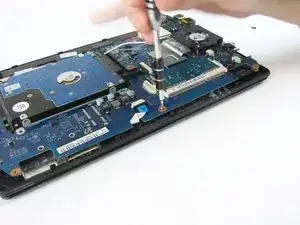

    • Use a Phillips #0 screwdriver to remove the six 4.5mm screws holding the motherboard to the case.

  3. C1DfFAHAhgTqaExE
    C1DfFAHAhgTqaExE
    Im1XXCRbOFrmxYhr

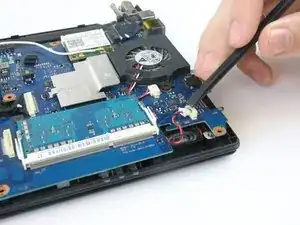

    • Use the spudger to remove the red and black cable located above the speaker from it's connector.

    • Also using the spudger, remove the small ribbon cable located a the bottom of the motherboard, towards the middle.

    • Fold the motherboard back, using the computer hinge as the axis of rotation. The motherboard will still be attached to the case by a few wires.

  4. eRGxLrUgrVfQDuEr
    • Gently unhook the red and black wires from the plastic clips holding them to the case. This can be done with only your fingers.

  5. 31qRTEZnnI6P3kLP

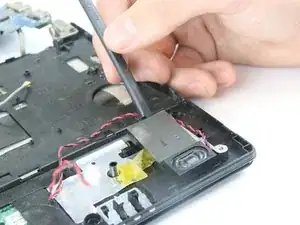

    • Using the spudger, lift the speaker up and out of it's holder, as shown. The yellow plastic tape should peel off as well.

Abschluss

To reassemble your device, follow these instructions in reverse order.
