Samsung NP-N210-JA02US Hard Drive Replacement

Geschrieben von: Afif Chehabaldeen
  • Kommentare: 0
Samsung NP-N210-JA02US Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 30 Minuten

Einleitung

Follow this guide to replace/upgrade your hard drive.

A hard drive replacement is helpful if your device is won't boot or crashes continually. Make sure your replacement hard drive is compatible with the Samsung NP-N210-JA02US.

  1. OULmKbROJWPEyPcO
    OULmKbROJWPEyPcO
    CNyrc2JCDI35E5Nm

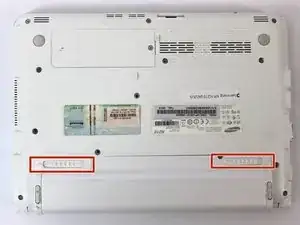

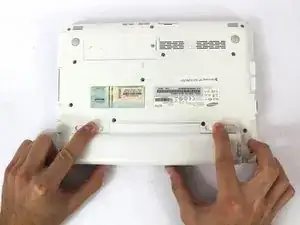

    • Carefully slide both locking pins to the unlocked position.

  2. pJ3E6TdDuwTkKZQn

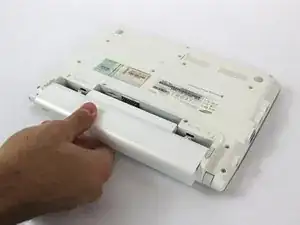

    • Slide the battery out of its housing.

  3. MybevSL1VVujoHno

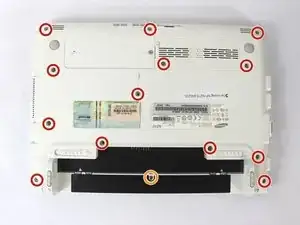

    • Remove the following 14 screws:

    • Thirteen 5 mm Phillips #1 screws

    • One 3.5 mm Philips #001 screw

  4. r3iitDLr4ZSej3h2

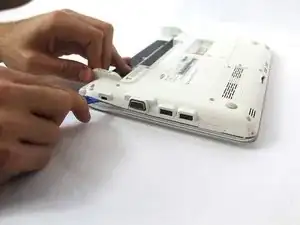

    • Carefully insert the plastic opening tool into the seam between the lower casing and the chrome bezel.

  5. 2kxjH3CrC2ImL4En

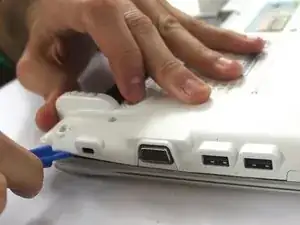

    • Slide the opening tool across all sides of the lower case. Then, lift it up to remove the case and reveal the internal components.

  6. vb5mLRPPlP2YOCR1
    vb5mLRPPlP2YOCR1
    Bqp2TSmJeh4V5qKP
    alBtH5ljqfGiFA5m

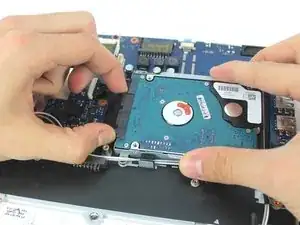

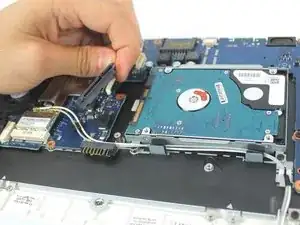

    • Carefully unplug the SATA connector from the hard drive.

  7. UejMDshqlv2Qp3OM
    UejMDshqlv2Qp3OM
    Gvdx1NLPwRN5bBxj

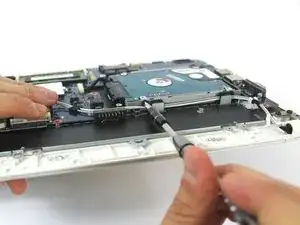

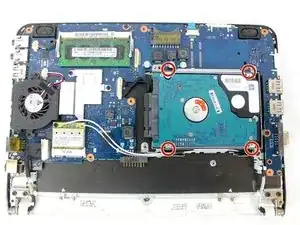

    • Remove the four black 3.5 mm Philips #1 screws on the (side) of the hard drive.

  8. xUJ3cN4saAqHj1PS

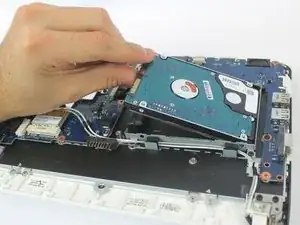

    • Gently lift the hard drive from its mounting bracket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
