Samsung NP-N210-JA02US RAM Replacement

Geschrieben von: Afif Chehabaldeen
  • Kommentare: 0
Samsung NP-N210-JA02US RAM Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

5 - 15 Minuten

Einleitung

Follow this guide to replace/upgrade your RAM on your Samsung NP-N210-JA02US. Make sure that your replacement RAM is suitable for this device.

  1. kaUPvUQLEgg4ixAV

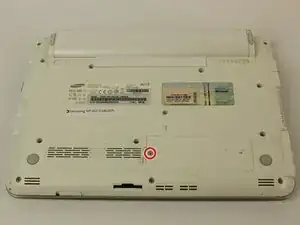

    • Remove the one 3.5 mm Philips #00 screw.

  2. yIfgOnRvgXtoRSZP

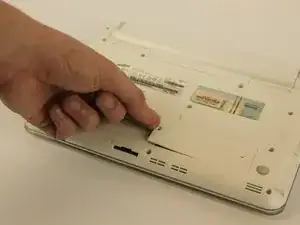

    • Use your finger to pry the RAM cover away from the body of the NP-N210 near the vent.

  3. fYSYIiZA2pYI6KZJ

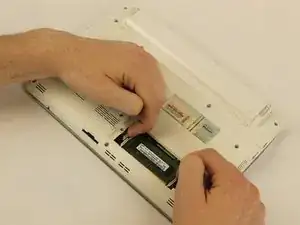

    • Pull the two retaining arms away from the RAM.

  4. yPaLjeQ1gyGiOwap

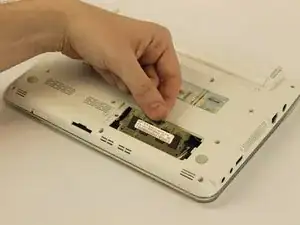

    • Pull the RAM out of its socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
