Samsung NP-N210-JA02US Wireless Card Replacement

Geschrieben von: Afif Chehabaldeen
  • Kommentare: 0
Samsung NP-N210-JA02US Wireless Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 40 Minuten

Einleitung

If you encounter issues while connecting to wireless internet connections, replacing your wireless card may enable you to access the internet.

  1. OULmKbROJWPEyPcO
    OULmKbROJWPEyPcO
    CNyrc2JCDI35E5Nm

    • Carefully slide both locking pins to the unlocked position.

  2. pJ3E6TdDuwTkKZQn

    • Slide the battery out of its housing.

  3. IbIaZncMN1DZPeWX

    • Remove the following 14 screws:

    • Thirteen 5 mm Phillips #1 screws

    • One 3.5 mm Philips #001 screw

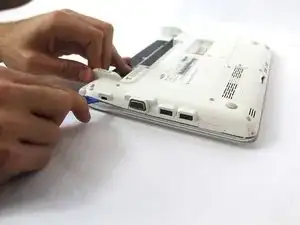

  4. DSsJiUn1eoFupNvc

    • Carefully insert the plastic opening tool in the seam between the lower casing and the chrome bezel.

  5. iOyT5PUorakIbM3W

    • Slide the opening tool across all sides of the lower case, and lift it up to remove the case and reveal the internal components.

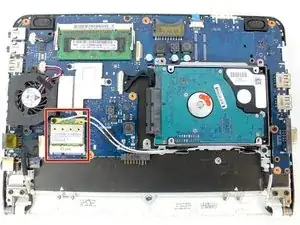

  6. EH3QFxOxBLABpyDW

    • Locate the wireless card.

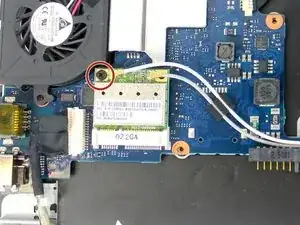

  7. to2u4NT1uHYKGLkD

    • Remove the 3.5 mm Philips #1 screw.

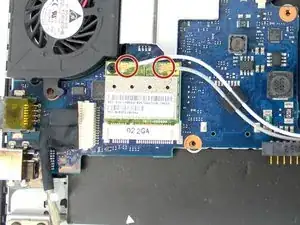

  8. EpNSZC46QPsJjbZX
    EpNSZC46QPsJjbZX

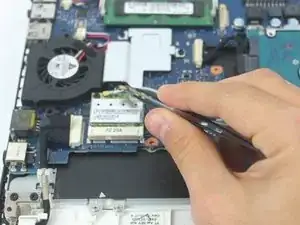

    oAS4VFCvRonB1R13

    • Carefully with tweezers, lift both connectors to disconnect them from the wireless card.

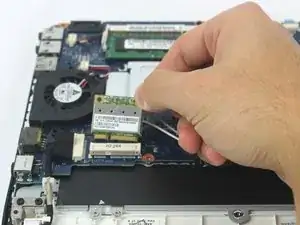

  9. SrWGwviPLIMZ6HQQ

    • Gently remove the wireless card from its socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
