Samsung NP-NC10-KA02US WLAN Card Replacement

Geschrieben von: Abigail Nicholas
  • Kommentare: 0
Samsung NP-NC10-KA02US WLAN Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

  1. 4oPHx1xhdpOMNvdn
    4oPHx1xhdpOMNvdn
    HxdpJlVpjCLBOsDl

    • Locate the external battery on the bottom side of the device.

    • Locate the tab on the right side of the battery.

    • Shift the tab to the left.

  2. WPomWScYUcTgaATl

    • Locate the tab on the left side of the device's battery.

    • Push the left tab to the right.

  3. JHhIGZ5Y3qETHqcs

    • Pull the battery up from the device.

  4. Etn6tHSlaFfgjeth

    • Locate the 14, 3.93 mm, screws that need to be removed on the base of the computer.

  5. 1LFklPRAD4VDlNF6

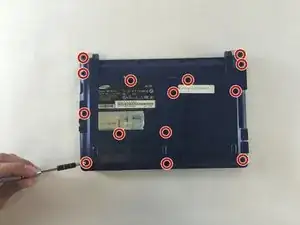

    • Remove all 14 of the 3.93 mm screws using a PH1 screw bit.

  6. REAKNAcNx1TVY1HZ
    REAKNAcNx1TVY1HZ
    SZkbOH6bvBffV4vS

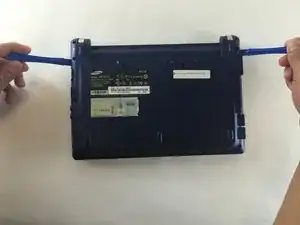

    • Using two plastic opening tools remove the back plate.

    • These plastic opening tools have a flat-head that extends as a wedge which are utilized to separate pressure fit plastic components without causing any damage to them.

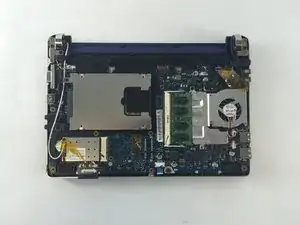

    • The back plate is now removed exposing all of the hardware components.

  7. JBMnvZGEuGV5tqBT

    • Using a 3.93mm Phillips screwdriver remove the screw attaching the WLAN card.

  8. jpIYtcsmoyghfOAV

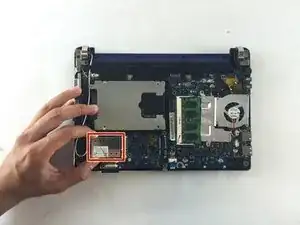

    • Gently lift the WLAN card.

  9. NgFXIEkv1piZuxZg
    NgFXIEkv1piZuxZg
    6BdSsPreMvcqPXaF

    • Gently using a plastic opening tool, remove the two latches attached to the WLAN card in the netbook.

    • Your WLAN card is now removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
