Samsung NP-R540-JA09US Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

Is your computer not loading filed properly or are you out of storage? Consider using this guide to replace the hard drive in your laptop.

  1. 4DOVUfBeCunMC1DY
    4DOVUfBeCunMC1DY
    B3bBR2gWR43m4SCO

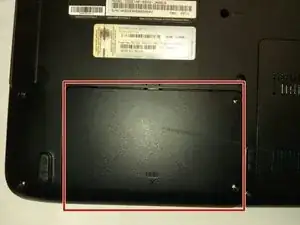

    • Flip the device to the bottoms-up position and locate the panel that says HDD.

    • In case of damage to panel, the HDD panel is just immediately right of the optical drive, and opposite from the battery

  2. SPDruMdKTqJyqOwx
    SPDruMdKTqJyqOwx
    6gqpVKPWni3G5eNg
    dMUGLwSbr2crtixs

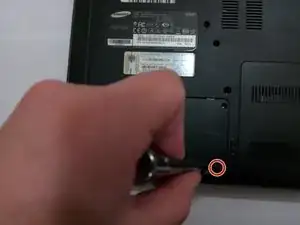

    • Remove the two 3.7mm securing screws with a Phillips #0 screwdriver.

    • After removing the screws, remove the panel covering the HDD.

  3. KWKUexodVquVV6dT
    KWKUexodVquVV6dT
    SCFflkn6sPTvmMcy
    HSxQ2kBLNJh3blOr

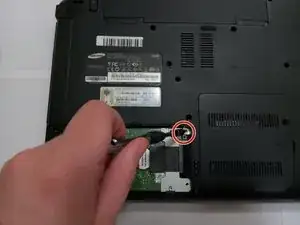

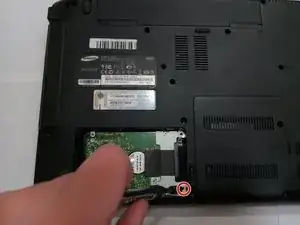

    • Remove the screws on the bracket and then remove the bracket by pulling up.

    • Once the bracket has been removed, slide the hard drive towards the gap in the cavity and then remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
