Samsung NP300E5C-A09US Motherboard Replacement

Geschrieben von: Joseph Sctbunio
  • Kommentare: 1
Samsung NP300E5C-A09US Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten - 1 Stunde

Einleitung

This guide teaches you how to replace the motherboard in a Samsung NP300E5C laptop.

  1. fZGlQFHbDTiWLThX

    • Lay laptop down so that the bottom is facing the sky.

  2. A4LDSLjxWaIYgt3K
    A4LDSLjxWaIYgt3K
    iIlTMSXHpdTSRD1h
    fQt3Taf5HVFyTTHJ

    • Push both tabs away from the center of the device.

    • While both are in the fully unlocked position, slide the battery out.

  3. J2W4AGdCIDMGyDVu
    J2W4AGdCIDMGyDVu
    Se3jOXtFSGlJeieA
    HoQuRfQhSkQmV5I2

    • Remove this 4 mm Phillips #8 screw using a Phillips #00 screwdriver.

    • Firmly, but gently pull the cover towards you.

    • After moving the cover about 2 centimeters, you can lift and remove it.

  4. fxYouIunXCePYP4K
    fxYouIunXCePYP4K
    eLOSwGIWMFE1ijvi
    rE4UU5mxAkhCDNoq

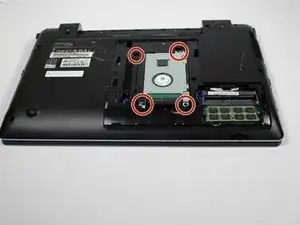

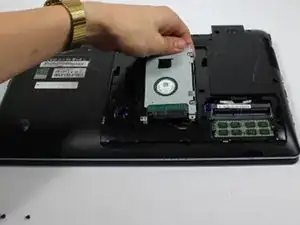

    • Remove these four 4 mm Phillips #8 screws using a Phillips #00 screwdriver.

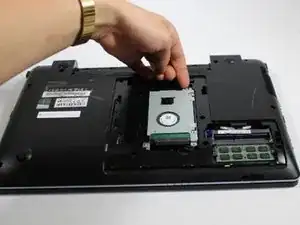

    • Gently lift the hard drive up, however do not remove it.

  5. TWLCW62BMHdpFOHL
    TWLCW62BMHdpFOHL
    1VwCtmCGZI3oviIH

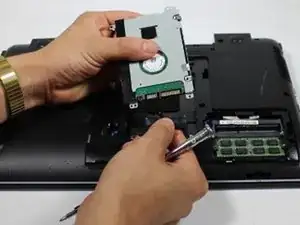

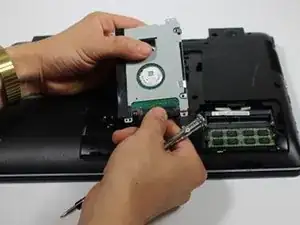

    • Firmly grasp the base of the connector at the bottom of the hard drive.

    • Gently pull the connector off to free the hard drive.

    Thank you most helpful could you tell me if this laptop has a cmos battery? email perk.co@btinternet .com

    John Perkins -

  6. WGVbQaSSRRRYCxjb

    • Remove the thirteen Philips screws securing the base to the palmrest.

    • Remove the screw securing the optical drive.

    • Remove the two small Philips screws securing the base to the palmrest.

    • Insert a spudger into the separation between the palmrest and the base, in the front of the laptop.

    • On this laptop, the base is what comes off of the palmrest, not the other way around, like on most laptops, so once you've got enough leverage, have the laptop flipped upside-down like in the picture, and pull up on the base.

    • Don't try to separate the trim around the keyboard!

  7. uABdXK6tAUog3VBu

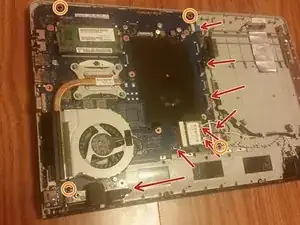

    • Remove all connectors from the motherboard.

    • Remove the screws securing the motherboard to the palmrest.

    • Lift the motherboard out. Remove all components that are connected to the motherboard, such as the wireless card, RAM, CPU, and CPU cooler, to the replacement motherboard. You're done!

Abschluss

To reassemble your device, follow these instructions in reverse order.
