Samsung NP305E5A-A03US Fan Replacement

Geschrieben von: Kris Stobbe
  • Kommentare: 0
Samsung NP305E5A-A03US Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

18

Zeitaufwand

8 - 10 Minuten

Einleitung

This guide will help you replace your fan. You may want to use this guie if your computer's fan stops running.

  1. pAKenFUmrEK4asQm

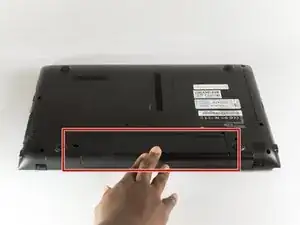

    • Be sure to power down your laptop before replacing your battery.

    • Turn your laptop upside down so that the battery component is facing you.

  2. tMvwFWlpDZuxKs1m

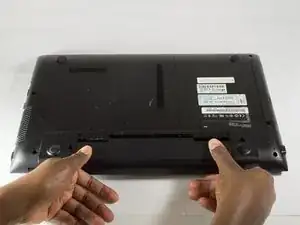

    • Place your thumbs on the lock tabs.

    • Slide the tabs with your thumbs in an outward direction (in the direction of the arrows).

    • You should hear a click when you properly slide the tabs all the way.

  3. bIGDNMoGYnUMamGQ
    bIGDNMoGYnUMamGQ
    RgSwBfD5fHx5Feo2

    • Pull the battery out of the laptop towards yourself to safely remove the battery.

    • If you are discarding the battery, please do not throw it away in the trash. Instead find a local battery recycling facility that will not damage the environment.

  4. iZHpvQni5SJd2tSX

    • Unscrew the 3.5mm screws using a Phillips J0 Screwdriver by rotating the screwdriver in the counter clockwise direction.

  5. U1OOXaA3h1DAcMTJ

    • Wedge the plastic opening tool between the L-shaped back panel to slide the panel off.

    • Note this may take force. If you have difficulties using the plastic opening tool, try to use your hands to pull the panel off.

  6. GrgqvbSyHVohLAnu
    GrgqvbSyHVohLAnu
    Mh1sSSFPW3eOKjAp

    • Pull the panel towards you to remove the panel.

  7. pREKOUYFIHqT1sim

    • Unscrew the three 3.5mm screws using a Phillips J0 Screwdriver by rotating the screwdriver in the counter clockwise direction.

    • Unscrew the one 4.45mm screws using a Phillips J0 Screwdriver by rotating the screwdriver in the counter clockwise direction.

  8. ox2QOkQVopwGTqVA
    ox2QOkQVopwGTqVA
    xBgWpU53Dp1eObFB

    • Pull the cord that connects the Hard Drive to the Motherboard to disconnect it.

  9. tFbhIkGHRAgFWxYn

    • Remove the Hard Drive by lifting it towards you.

  10. IP2hHrLvToJfHkGW

    • Unscrew the fourteen 9.5mm screws using a Phillips J0 Screwdriver by rotating the screwdriver in the counter clockwise direction.

    • Unscrew the two 3.5mm screws using a Phillips J0 Screwdriver by rotating the screwdriver in the counter clockwise direction.

  11. FclA4osth2p3ZfZF
    FclA4osth2p3ZfZF
    pvPZuQa1JsmZaKLH

    • Insert the plastic opening tool between the seam of the back panel and the laptop.

    • Slide the plastic opening tool along the seam to loosen the back panel from the laptop.

    • It may be difficult to slide the plastic opening tool along the seam, so you may have to apply some force.

  12. kVwDUlI4OpByaRWe
    kVwDUlI4OpByaRWe
    UVnEyykqW1LuDDBI
    hKcIwAFPMs5XNyLN

    • Remove the Back Panel by lifting it towards you.

    • It may take some force to remove the Back Panel.

  13. J12ydwKOO4d5aApR
    J12ydwKOO4d5aApR
    NX5LjgE33yoipXsf

    • Remove the Optical Drive by sliding it away from the laptop.

  14. muonZOmBdOEehnrT

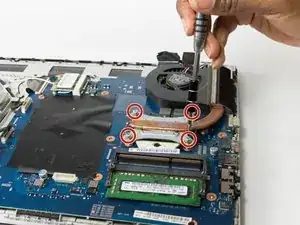

    • Unscrew the four 8.9mm screws using a Phillips J0 Screwdriver by rotating the screwdriver in the counter clockwise direction.

    • The screws will only loosen to the point to where you can remove the vent, so you will not be able to fully remove the screws.

  15. 4pgg4jpShK4URs1K
    4pgg4jpShK4URs1K
    RvnLwta6fv6jtPyn

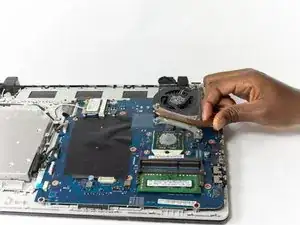

    • Remove the vent by lifting it away from the laptop.

  16. BeSKGt2qSW3EwekQ

    • Pull the cord that connects the Fan to the Motherboard to disconnect it.

  17. TMgHnYPDh1VKFUkQ

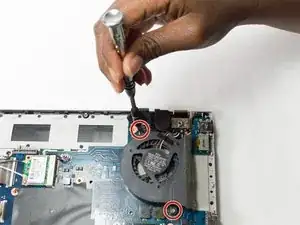

    • Unscrew the two 4.45mm screws using a Phillips J0 Screwdriver by rotating the screwdriver in the counter clockwise direction.

  18. 126DNLSkx3hXDXsr

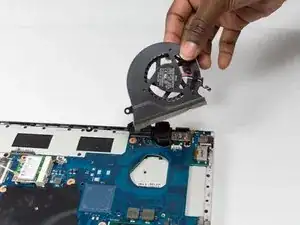

    • Remove the Fan by lifting it towards you.

Abschluss

To reassemble your device, follow these instructions in reverse order.
