Samsung NP305E5A-A03US Optical Drive Replacement

Geschrieben von: Kris Stobbe
  • Kommentare: 0
Samsung NP305E5A-A03US Optical Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

7 - 10 Minuten

Einleitung

This guide will help you replace your malfunctioning optical drive. You may want to use this guide if your CD/DVD drive is unresponsive.

  1. iZHpvQni5SJd2tSX

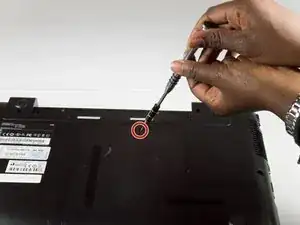

    • Unscrew the 3.5mm screws using a Phillips J0 Screwdriver by rotating the screwdriver in the counter clockwise direction.

  2. U1OOXaA3h1DAcMTJ

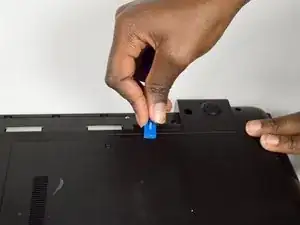

    • Wedge the plastic opening tool between the L-shaped back panel to slide the panel off.

    • Note this may take force. If you have difficulties using the plastic opening tool, try to use your hands to pull the panel off.

  3. GrgqvbSyHVohLAnu
    GrgqvbSyHVohLAnu
    Mh1sSSFPW3eOKjAp

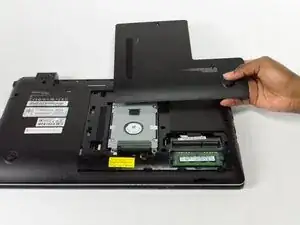

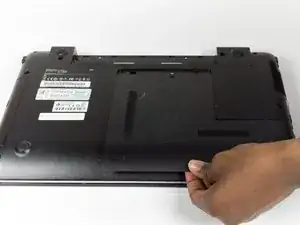

    • Pull the panel towards you to remove the panel.

  4. pREKOUYFIHqT1sim

    • Unscrew the three 3.5mm screws using a Phillips J0 Screwdriver by rotating the screwdriver in the counter clockwise direction.

    • Unscrew the one 4.45mm screws using a Phillips J0 Screwdriver by rotating the screwdriver in the counter clockwise direction.

  5. ox2QOkQVopwGTqVA
    ox2QOkQVopwGTqVA
    xBgWpU53Dp1eObFB

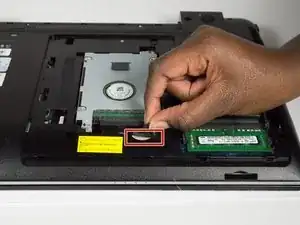

    • Pull the cord that connects the Hard Drive to the Motherboard to disconnect it.

  6. tFbhIkGHRAgFWxYn

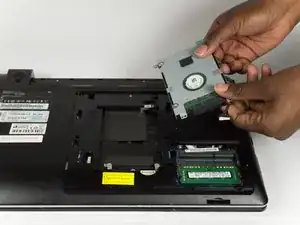

    • Remove the Hard Drive by lifting it towards you.

  7. IP2hHrLvToJfHkGW

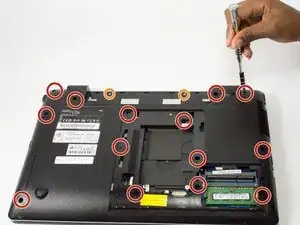

    • Unscrew the fourteen 9.5mm screws using a Phillips J0 Screwdriver by rotating the screwdriver in the counter clockwise direction.

    • Unscrew the two 3.5mm screws using a Phillips J0 Screwdriver by rotating the screwdriver in the counter clockwise direction.

  8. FclA4osth2p3ZfZF
    FclA4osth2p3ZfZF
    pvPZuQa1JsmZaKLH

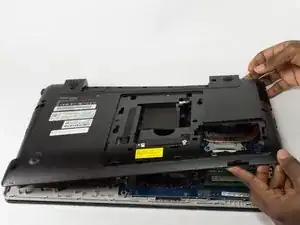

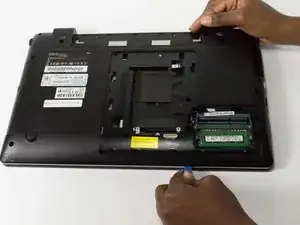

    • Insert the plastic opening tool between the seam of the back panel and the laptop.

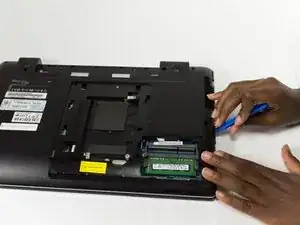

    • Slide the plastic opening tool along the seam to loosen the back panel from the laptop.

    • It may be difficult to slide the plastic opening tool along the seam, so you may have to apply some force.

  9. kVwDUlI4OpByaRWe
    kVwDUlI4OpByaRWe
    UVnEyykqW1LuDDBI
    hKcIwAFPMs5XNyLN

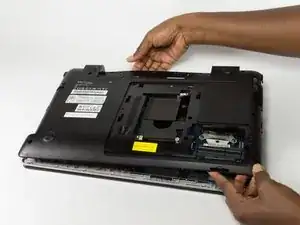

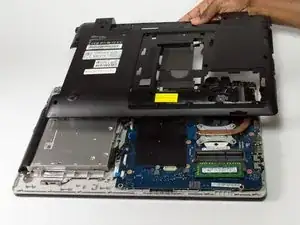

    • Remove the Back Panel by lifting it towards you.

    • It may take some force to remove the Back Panel.

  10. J12ydwKOO4d5aApR
    J12ydwKOO4d5aApR
    NX5LjgE33yoipXsf

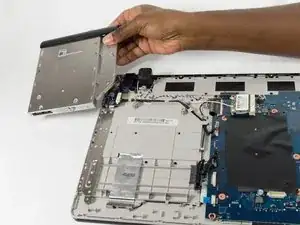

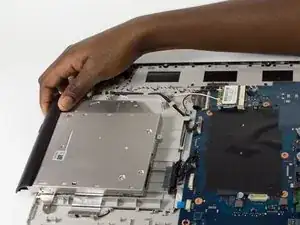

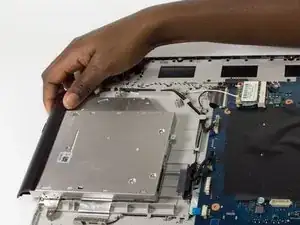

    • Remove the Optical Drive by sliding it away from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
