Samsung NP350E5C-A02US Hard Drive Replacement

Geschrieben von: James Kingrey
  • Kommentare: 0
Samsung NP350E5C-A02US Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 Minuten

Einleitung

If your hard drive is bad, or you need a larger hard drive, this guide will show you how to replace your hard drive.

  1. LWYKxxBVEXYjyYgt

    • Lay the laptop down so that the bottom is facing up.

    • There is no battery in the picture.

  2. FvwcI22Sj5wvuVL2

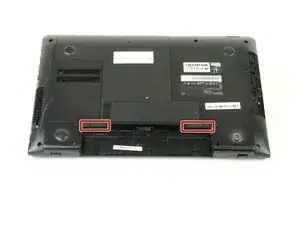

    • Slide the two plastic tabs to the opposing sides.

    • There is no battery in the picture.

  3. 6LCWOKHdLYwHhAlT

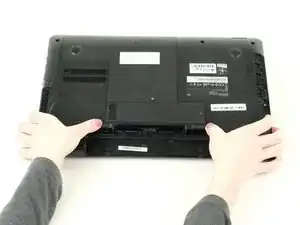

    • While both are in the unlocked position, slide the battery out.

    • There is no battery in the picture.

  4. EehGlSRxSWjAGTSq

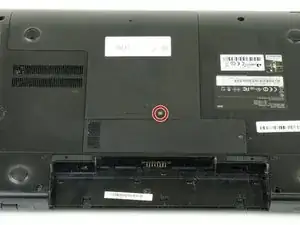

    • Remove the M2.5x5 mm screw with a Phillips #0 screwdriver.

  5. 3Wd1KpC3AD3qZLpV

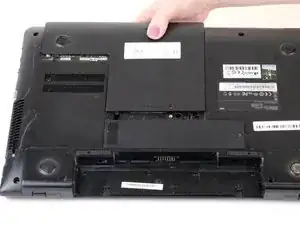

    • Slide the cover 1/4" towards the front of the laptop.

  6. PwQGHKLYDGufoAP3

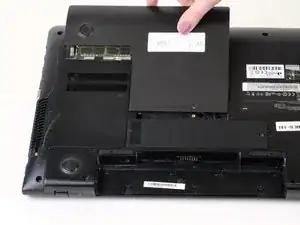

    • Then, lift the cover off.

  7. oVNyqfGweUQNkdFt

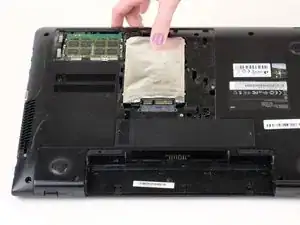

    • Slide the hard drive 1/4" towards the front of the laptop.

  8. T3aTQguTu1VoMkwA

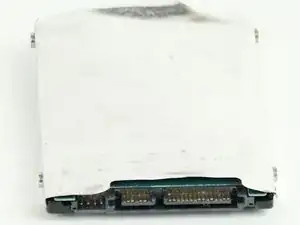

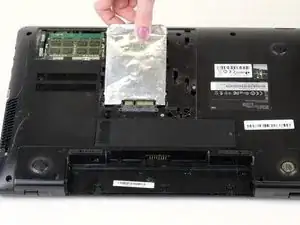

    • Then, lift the drive up and out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
