Samsung NP350E5C-A02US Optical Drive Replacement

Geschrieben von: James Kingrey
  • Kommentare: 0
Samsung NP350E5C-A02US Optical Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

3 Minuten

Einleitung

If the optical drive isn’t working correctly, this guide will help you replace the drive.

  1. LWYKxxBVEXYjyYgt

    • Lay the laptop down so that the bottom is facing up.

    • There is no battery in the picture.

  2. FvwcI22Sj5wvuVL2

    • Slide the two plastic tabs to the opposing sides.

    • There is no battery in the picture.

  3. 6LCWOKHdLYwHhAlT

    • While both are in the unlocked position, slide the battery out.

    • There is no battery in the picture.

  4. EehGlSRxSWjAGTSq

    • Remove the M2.5x5 mm screw with a Phillips #0 screwdriver.

  5. 3Wd1KpC3AD3qZLpV

    • Slide the cover 1/4" towards the front of the laptop.

  6. PwQGHKLYDGufoAP3

    • Then, lift the cover off.

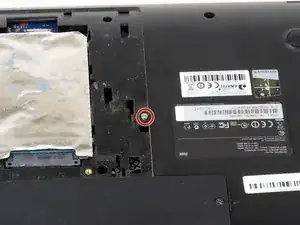

  7. HnSTwnJVZpUJPK4m

    • Find the screw between the hard drive and the model label. Then remove the M2.5X5 screw with a Phillips #0 screwdriver.

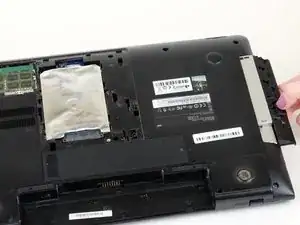

  8. URt5ZkBfKNGERBEN

    • Pull the optical drive straight out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
