Samsung NP350E5C-A02US RAM Replacement

Geschrieben von: James Kingrey
  • Kommentare: 0
Samsung NP350E5C-A02US RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

5 Minuten

Einleitung

If you have followed the steps on our troubleshooting page and find that your memory sticks are bad. Then, this guide will help you replace them.

  1. LWYKxxBVEXYjyYgt

    • Lay the laptop down so that the bottom is facing up.

    • There is no battery in the picture.

  2. FvwcI22Sj5wvuVL2

    • Slide the two plastic tabs to the opposing sides.

    • There is no battery in the picture.

  3. 6LCWOKHdLYwHhAlT

    • While both are in the unlocked position, slide the battery out.

    • There is no battery in the picture.

  4. EehGlSRxSWjAGTSq

    • Remove the M2.5x5 mm screw with a Phillips #0 screwdriver.

  5. 3Wd1KpC3AD3qZLpV

    • Slide the cover 1/4" towards the front of the laptop.

  6. PwQGHKLYDGufoAP3

    • Then, lift the cover off.

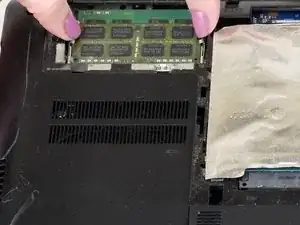

  7. AFWoGYQh22qdHadZ

    • Gently push the lock springs outwards and the RAM stick will rise when it's free.

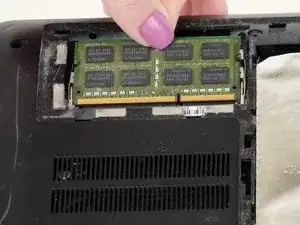

  8. WHAwXoMYYtJLY2o1

    • Then, gently pull the RAM stick towards the front of the laptop.

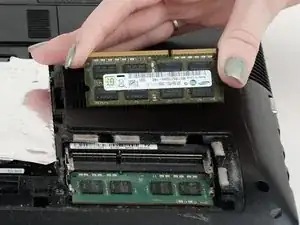

  9. ivHxGiMQpJTNFwTW

    • Repeat the last two steps for the second RAM stick if needed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
