Samsung NP350V5C-T02US CD Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

4 Minuten

Einleitung

This guide helps users to replace the CD Drive successfully by following these easy steps.

  1. RafPu6Z1tENFViQa

    • Flip the laptop over so that the bottom is facing toward you.

  2. G3E5BXKIR1f1dQxp

    • Using the Phillips #1 screwdriver, remove the M2.5X5 mm screw to take the back cover out.

  3. LrWJEXHZxHip2Bke

    • Using your hand slide the ODD/HDD/Memory panel off in a downward motion.

  4. CYMDPZnVxgZeZheI

    • Locate and remove the M2.5X5 screw on the left hand side.

  5. QsoMQGA3ZPI1DBVx
    QsoMQGA3ZPI1DBVx
    dYndww2l4AEEBhVo

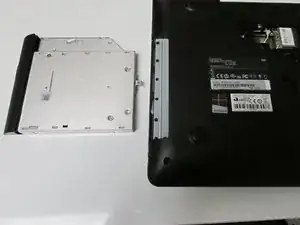

    • Pull out the CD drive and replace with the new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
