Samsung NP36535C-S05US CD Drive Replacement

Geschrieben von: Jessie Coney
  • Kommentare: 1
Samsung NP36535C-S05US CD Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

The CD drive is a major component in this laptop. Users will be shown how to replace the CD drive in this guide.

  1. m2cYl32asyfQyNRC

    • Turn the computer off.

    • Disconnect the charging cable from the laptop.

    • Failure to disconnect cable may result in electric shock.

    • Flip the laptop face down on a flat surface.

  2. wpJfANLl4REmRHiS

    • Slide the left and right switches to the unlock position.

  3. D4JxYQuOCrpCYI2j
    D4JxYQuOCrpCYI2j
    1d3VtJgdDdObKSFl

    • While holding the left and right lock switches in the unlock position, pull the battery away from the computer.

  4. WfXqISl5l3FIDfpv
    WfXqISl5l3FIDfpv
    ZVCqD3EEMjikT1lU
    TEPhrPVjKsTiRsdd

    • Locate the ODD/HDD/Memory panel.

    • Remove the 1.9 mm screw located on the ODD/HDD/Memory panel with the Philips #0 screwdriver.

    • Slide the ODD/HDD/Memory panel away from the device to remove it.

  5. ldhSIXwpMc1p2Ci6
    ldhSIXwpMc1p2Ci6
    CVWYfcixRMGP5T1F

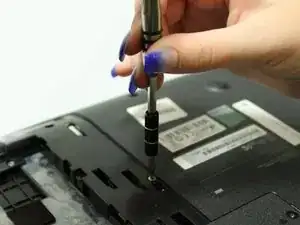

    • Locate the screw on the right side of the SDD port.

    • Remove the 2.25 mm screw located on the right side of the SDD port with the Philips #0 screwdriver.

  6. Alcif1wJhMDBOHJS
    Alcif1wJhMDBOHJS
    53DNuDuZIlNGhm4U
    eSEDmWHXmMoAyq3j

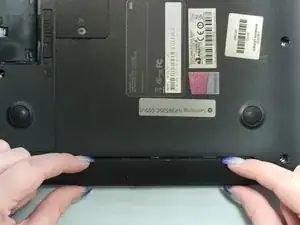

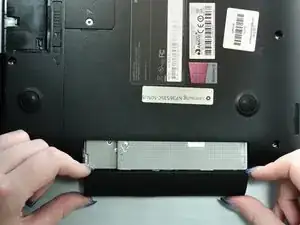

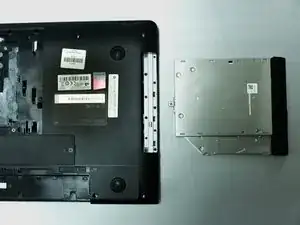

    • Locate the CD drive and slide the drive out of the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
