Samsung NP36535C-S05US ODD/HDD/Memory panel Replacement

Geschrieben von: Mykel Vanek
  • Kommentare: 0
Samsung NP36535C-S05US ODD/HDD/Memory panel Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

45 Sekunden

Einleitung

This guide will show how to remove the OD/HDD/Memory panel on the bottom of the laptop. Removing this panel gives access to multiple components in the computer.

  1. m2cYl32asyfQyNRC

    • Turn the computer off.

    • Disconnect the charging cable from the laptop.

    • Failure to disconnect cable may result in electric shock.

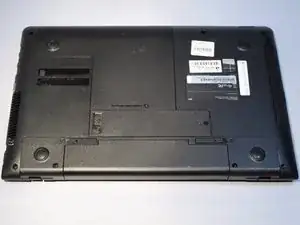

    • Flip the laptop face down on a flat surface.

  2. wpJfANLl4REmRHiS

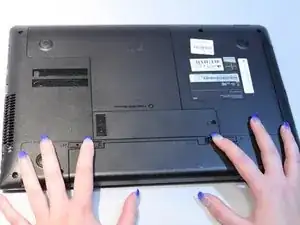

    • Slide the left and right switches to the unlock position.

  3. D4JxYQuOCrpCYI2j
    D4JxYQuOCrpCYI2j
    1d3VtJgdDdObKSFl

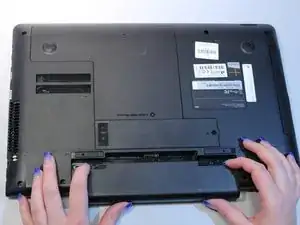

    • While holding the left and right lock switches in the unlock position, pull the battery away from the computer.

  4. WfXqISl5l3FIDfpv
    WfXqISl5l3FIDfpv
    ZVCqD3EEMjikT1lU
    TEPhrPVjKsTiRsdd

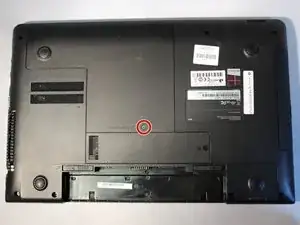

    • Locate the ODD/HDD/Memory panel.

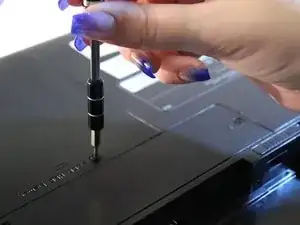

    • Remove the 1.9 mm screw located on the ODD/HDD/Memory panel with the Philips #0 screwdriver.

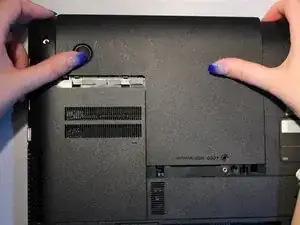

    • Slide the ODD/HDD/Memory panel away from the device to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
