Einleitung
We are going to teach users how to replace the RAM chips.
Werkzeuge
-
-
Turn the computer off.
-
Disconnect the charging cable from the laptop.
-
Flip the laptop face down on a flat surface.
-
-
-
While holding the left and right lock switches in the unlock position, pull the battery away from the computer.
-
-
-

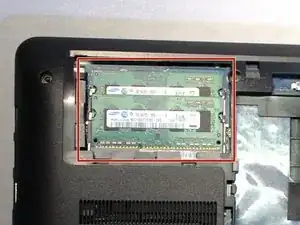

Locate the ODD/HDD/Memory panel.
-
Remove the 1.9 mm screw located on the ODD/HDD/Memory panel with the Philips #0 screwdriver.
-
Slide the ODD/HDD/Memory panel away from the device to remove it.
-
-
-

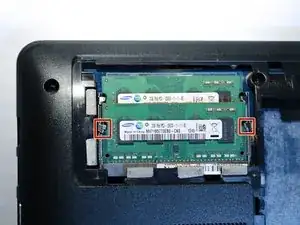

Locate the two (2) metal brackets holding the RAM chip in place.
-

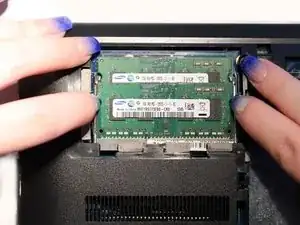

Carefully push the brackets outwards away from the RAM chip, causing it to pop out of the brackets.
-

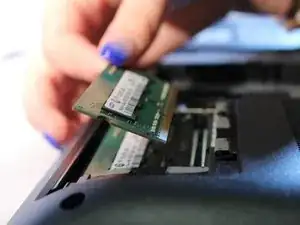

Remove the first RAM chip by pulling it up and out of its plug.
-
-
-
Locate the second set of metal brackets holding the remaining RAM chip.
-

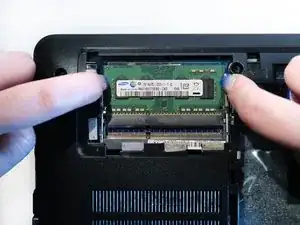

Carefully push the brackets outwards away from the RAM chip, causing it to pop out of the brackets.
-
Remove the second RAM chip by pulling it up and out of its plug.
-
To reassemble your device, follow these instructions in reverse order.
