Samsung NP510R5E-A01UB Display Replacement

Geschrieben von: Dominic Simpson
  • Kommentare: 2
Samsung NP510R5E-A01UB Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 15 Minuten

Einleitung

The display for a device gives visual output for the user to interact with. This guide will help you replace it properly.

  1. UpkBwJOmUVrhQM3o

    • Make sure the device is powered off before beginning.

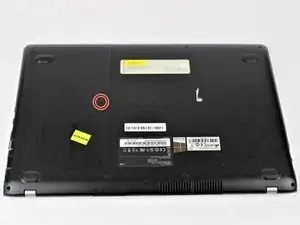

    • Using the Phillips #0 screwdriver, remove the 6.5mm long screw in the area circled.

  2. WKDtNPTo4t4NYupx

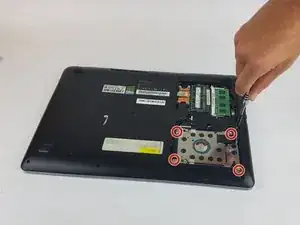

    • With the cover removed, unscrew all four of the 4.75mm long screws using the Phillips #0 screwdriver.

  3. sJUAKvHuBfmBJZC6
    sJUAKvHuBfmBJZC6
    owNDkFPnIPjHDHuG

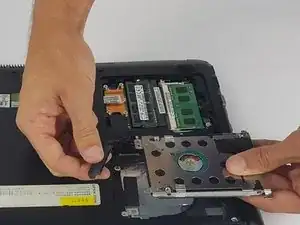

    • Unplug the connector from the hard drive by pulling straight out.

    Black bullet. Installing and setting up new hard drive?

    Watis Ekthuvapranee -

  4. 2jFCLDPLhX6ADWCI
    2jFCLDPLhX6ADWCI
    j5T2naMOBYRTOPev
    aLLxX3JjgVEBu5NL

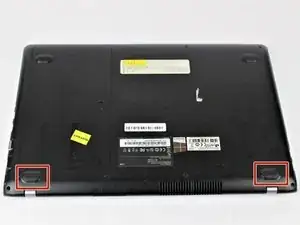

    • Remove the two rubber feet with arrows by them on the back side to uncover two screws.

    • Unscrew the four silver 4.4mm long screws near the hard drive.

    • Unscrew the remaining nine black 6.5mm long screws. Then remove the back casing using a pry tool if needed.

  5. uhuZrCUumBQOLK15
    uhuZrCUumBQOLK15
    PbOrGB3FE6YgKEH4

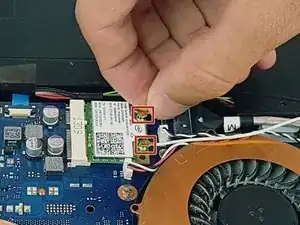

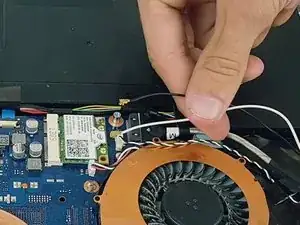

    • Disconnect the black and white cables by pulling up as pictured.

  6. HVRLZmtmBE3VaGAV
    HVRLZmtmBE3VaGAV
    OZ6lfRBuc4QxfpOc

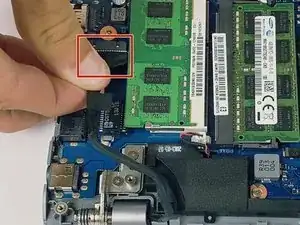

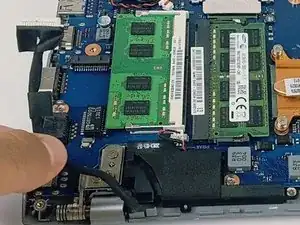

    • Disconnect the black cable by pulling straight out.

  7. cEsTQhXBJlAbRJsL
    cEsTQhXBJlAbRJsL
    k2fDZkP24CnQgjkn
    BEPAmOQeP1Dc6I1u

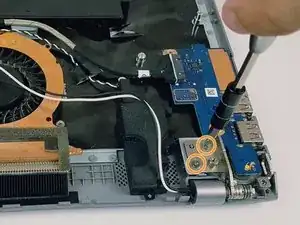

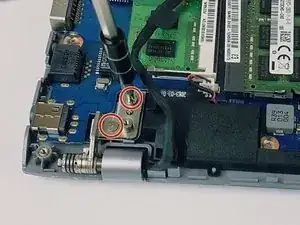

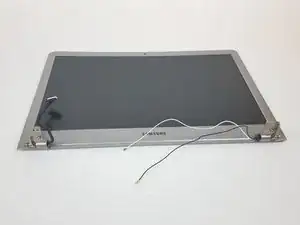

    • Unscrew the two 4.45mm long screws to disconnect the left hinge.

    • Unscrew the two 4.45mm long screws to disconnect the right hinge.

    • At this point the screen and plastic housing should be completely disconnected.

  8. A4BgvcXLtmmWPB32
    A4BgvcXLtmmWPB32
    ncR2bCuEV3BAWWSI

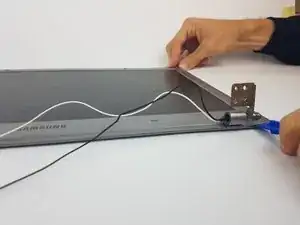

    • Using the plastic opening tool, pry open the plastic housing that holds the display.

  9. UHMsyOjRPlByFBu3
    UHMsyOjRPlByFBu3
    jf6NgjuxyklKPVnS

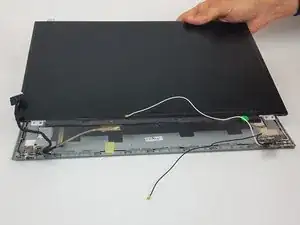

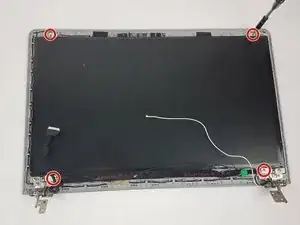

    • Unscrew the four 3.55mm long screws that hold the display in place.

  10. gafIBTGkDyJdSkSV
    gafIBTGkDyJdSkSV
    4xmw33cyGKmBdrHN

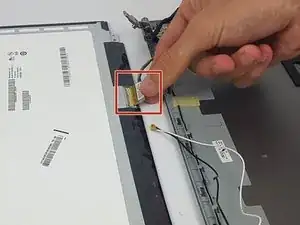

    • Disconnect the last cable by pulling straight out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
