Samsung NP510R5E-A01UB RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

2 - 5 Minuten

Einleitung

Random Access Memory (RAM) is a critical part of any device, it assists the device to run smoothly. This guide will show you how to replace it properly.

  1. CgeDjEXG6jE5EHq4
    CgeDjEXG6jE5EHq4
    1wkEteTIGSNKMEQa

    • Make sure the device is powered off before beginning.

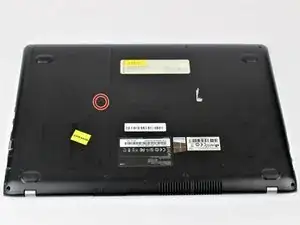

    • Using the Phillips #0 screwdriver, remove the 6.5mm long screw in the area circled.

  2. OQhN42KgvNeiNnBl
    OQhN42KgvNeiNnBl
    E2iWpDLNKPBDd2bF
    NisC55OoN1iQfeBi

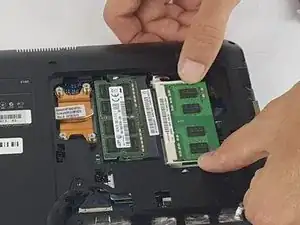

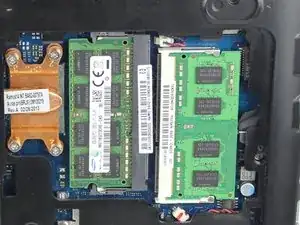

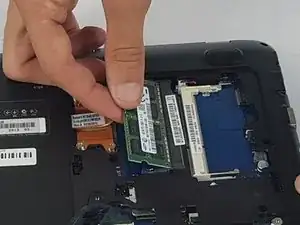

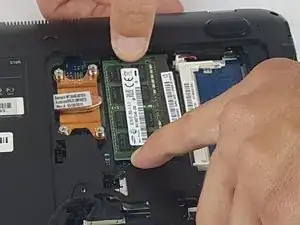

    • Press down on the tabs on both sides of the RAM to release, then pull away from the mount to remove.

    Black bullet. Pulling out the RAM with tweezers better, no? Is that the only bolt there is to access RAM?

    Watis Ekthuvapranee -

Abschluss

To reassemble your device, follow these instructions in reverse order.
