Samsung NP540U3C-A02UB RAM Replacement

Geschrieben von: Colby Bolger
  • Kommentare: 0
Samsung NP540U3C-A02UB RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

20 - 40 Minuten

Einleitung

This guide covers how to replace the RAM for the Samsung Series 5 NP540U3C-A02UB.

The RAM provides memory to the laptop while running the operating system and its many applications. Such memory is essential for allowing the laptop to complete many tasks such as loading applications, editing spreadsheets, and browsing the Internet. Damage to the laptop's RAM may result in a slow operating system or crashing. If you are experiencing these issues, see our troubleshooting guide for possible causes and solutions before attempting to replace the RAM.

Free diagnostic programs available via the Internet can detect if crashes are a result of RAM issues, or some other cause. If a replacement is necessary, the laptop uses SODIMM DDR3 RAM running at a speed of 1600 MHz. Ensure that any RAM purchased meets these specifications. Compatible RAM is attached below.

It should be noted that the laptop comes with 4 GB of soldered RAM on the motherboard which cannot be removed. An additional 4 GB of RAM can be added and replaced.

  1. VOTR6G1CfSiq2tMM

    • Turn off the laptop before beginning disassembly and unplug it from the power cord.

    • Place the laptop flat with its bottom facing up.

  2. ebSMIjb6ORVBGlyA
    ebSMIjb6ORVBGlyA
    laWudhPJobvwBQ21

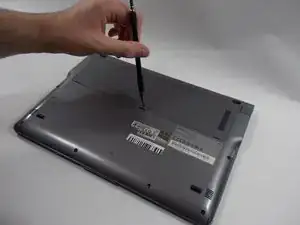

    • Remove one 4 mm Phillips #00 screw labeled "HDD Memory".

  3. AOpWDG5paVOFkdin
    AOpWDG5paVOFkdin
    K4FxhYCumWU5rHRd
    obefTlyhPoAx5LRg

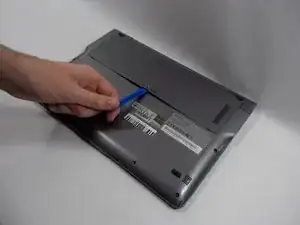

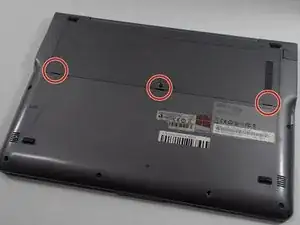

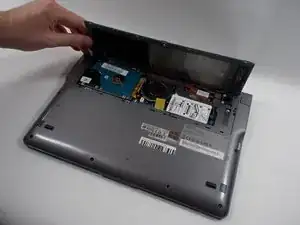

    • Gently release the 3 clips holding the HDD cover with the plastic opening tool.

    • Remove the HDD cover from the device.

  4. wFco3SMgyZHJtNVj
    wFco3SMgyZHJtNVj
    n2PgIxGfuEPhUdwW

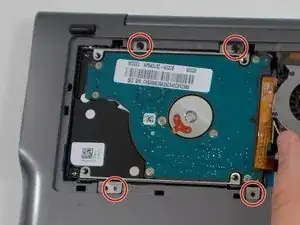

    • Remove the four 6 mm Phillips #00 screws attaching the hard drive to the case.

  5. wBNCXUr4mTJJYNN3
    wBNCXUr4mTJJYNN3
    Z5ZMRNrNCNRbKkvV

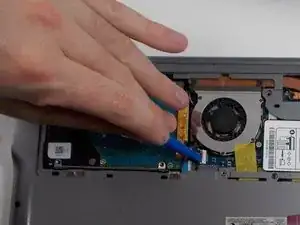

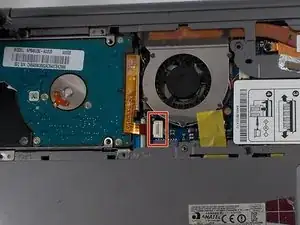

    • Using the plastic opening tool, push the hard drive connector clip upwards in order to release the cable.

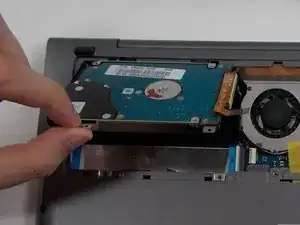

  6. u2K6WwyORP42HX2S
    u2K6WwyORP42HX2S
    EOpNTpVunVwIktlL

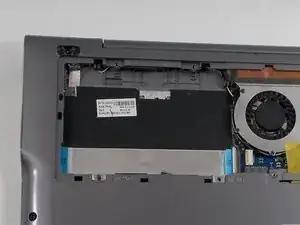

    • Remove the hard drive from the case.

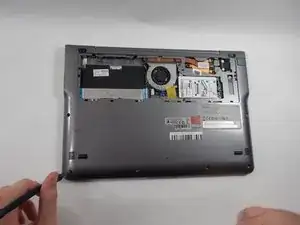

  7. XpITPNWveYivIdTu
    XpITPNWveYivIdTu
    EoqHBZ6swWvBneJr
    AVuVML4NCKZyxWKg

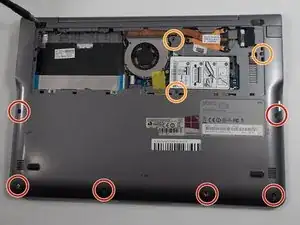

    • Remove the following screws holding the case together:

    • 6x 4mm Phillips #00 screws.

    • 3x 6mm Phillips #00 screws.

  8. ApPOUfhSYPE5EQmG
    ApPOUfhSYPE5EQmG
    hZGX2tLIBPiw1y5q

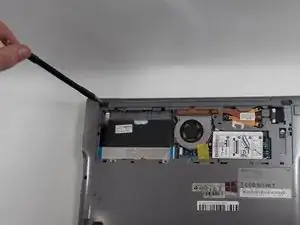

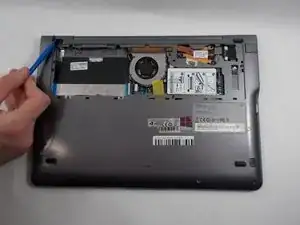

    • Using the opening tool, remove the two rubber pads just above the hard drive cover.

  9. ARJPttL3iEBbJqxG
    ARJPttL3iEBbJqxG
    yisFBMCkapadMcaf

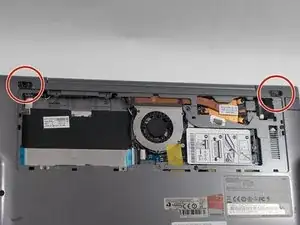

    • Remove the two 4mm Phillips #00 screws formerly concealed by the pads.

  10. 6EyfZkDNve3YXdEh

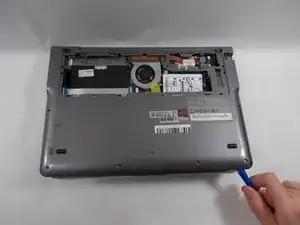

    • Using the plastic opening tool, gently lift and remove the back cover.

    • There are clips along the edges of the back cover that hold it in place. Be careful not to break these.

  11. MobrrPXdlyEmw3OH
    MobrrPXdlyEmw3OH
    mHZbYQOStMXurrpx
    EEmJfdEbhVtHImHZ

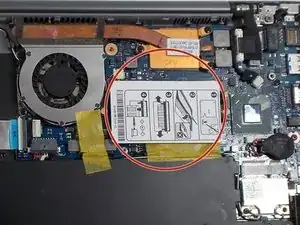

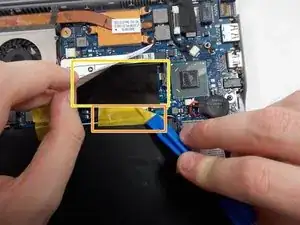

    • Lift up the white instruction guide with your hand to expose the RAM module underneath.

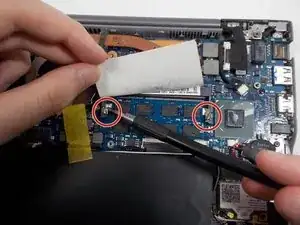

    • Using the plastic opening tool or your hand, peel off the yellow tape.

    • Using the plastic opening tool or your hand, gently remove the black cover that lays on top of the RAM.

  12. PiuLPQbHbfFNQbLQ

    • Additional RAM can be added or removed on top of the 4 GB RAM that comes with the laptop.

    • The new RAM chip slides on top in-between the brackets.

    • The 4 GB RAM that initially comes with the laptop can not be removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
