Samsung NP540U3C-A02UB Speaker Replacement

Geschrieben von: Alejandro
  • Kommentare: 0
Samsung NP540U3C-A02UB Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

30 - 55 Minuten

Einleitung

This guide covers how to replace the speakers for the Samsung Series 5 NP540U3C-A02UB.

The speakers are responsible for playing audio for the device. The speakers may need to be replaced if no sound is coming from the laptop, or sound has bad quality. If the sound on your laptop is not working adequately, see our troubleshooting guide for possible causes and solutions before attempting to replace the speakers.

  1. VOTR6G1CfSiq2tMM

    • Turn off the laptop before beginning disassembly and unplug it from the power cord.

    • Place the laptop flat with its bottom facing up.

  2. ebSMIjb6ORVBGlyA
    ebSMIjb6ORVBGlyA
    laWudhPJobvwBQ21

    • Remove one 4 mm Phillips #00 screw labeled "HDD Memory".

  3. AOpWDG5paVOFkdin
    AOpWDG5paVOFkdin
    K4FxhYCumWU5rHRd
    obefTlyhPoAx5LRg

    • Gently release the 3 clips holding the HDD cover with the plastic opening tool.

    • Remove the HDD cover from the device.

  4. wFco3SMgyZHJtNVj
    wFco3SMgyZHJtNVj
    n2PgIxGfuEPhUdwW

    • Remove the four 6 mm Phillips #00 screws attaching the hard drive to the case.

  5. wBNCXUr4mTJJYNN3
    wBNCXUr4mTJJYNN3
    Z5ZMRNrNCNRbKkvV

    • Using the plastic opening tool, push the hard drive connector clip upwards in order to release the cable.

  6. u2K6WwyORP42HX2S
    u2K6WwyORP42HX2S
    EOpNTpVunVwIktlL

    • Remove the hard drive from the case.

  7. 5ysCPLMMmLmslx2j
    5ysCPLMMmLmslx2j
    Yg4qEoAJsNW6tdjV

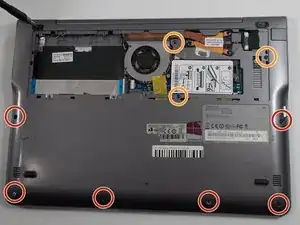

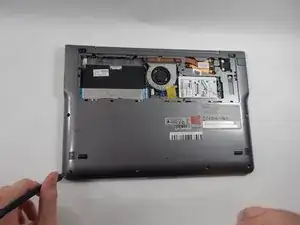

    • Remove the following screws holding the case together:

    • 6x 4mm Phillips #00 screws.

    • 3x 6mm Phillips #00 screws.

  8. cCJqIFthwJowUHsM
    cCJqIFthwJowUHsM
    utJLHeRfle364Isq

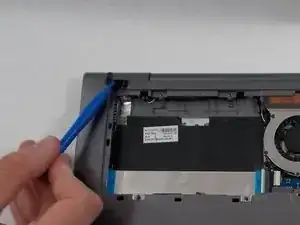

    • Using the opening tool, remove the two rubber pads just above the hard drive cover.

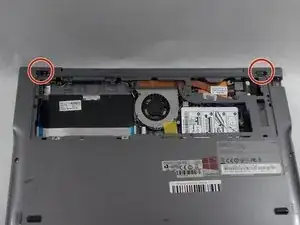

  9. 1E1AIxZEyQsGZsRI
    1E1AIxZEyQsGZsRI
    cmB3Nk16NLWATowU

    • Remove the 2x 4mm Phillips #00 screws formerly concealed by the pads.

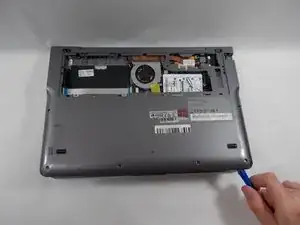

  10. aGtBOdyePaZuRtsV

    • Using the plastic opening tool, gently lift and remove the back cover.

    • There are clips along the edges of the back cover that hold it in place. Be careful not to break these.

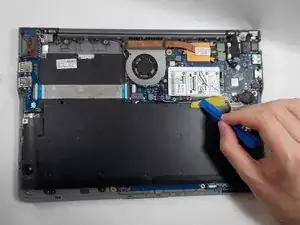

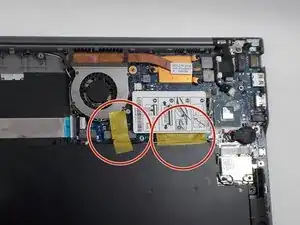

  11. vsH2fPgRMLCVWnqy
    vsH2fPgRMLCVWnqy
    F4C4kwQNL3chm6FV

    • Using your hands or the plastic opening tool, gently remove the tape holding the wires in place.

  12. g12tX6xVHUrcLcr4
    g12tX6xVHUrcLcr4
    fdvkExWqRhqCO1Fj
    NjmGo6VkFLBZjrsf

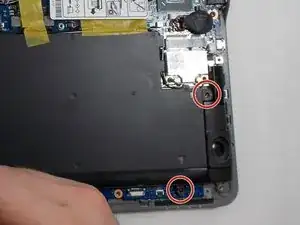

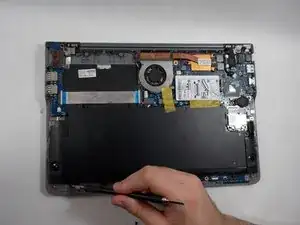

    • Remove the 4x 4mm Phillips #00 screws securing the battery to the chassis.

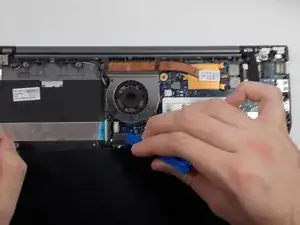

  13. i1kZuSqnZV2ScKfZ
    i1kZuSqnZV2ScKfZ
    ODgbmr1SFb3mJZmo

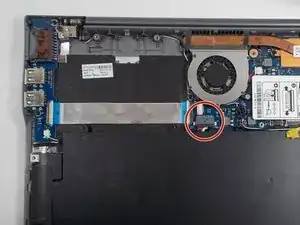

    • Using the plastic opening tool, gently pull the battery connector towards the battery to disconnect it.

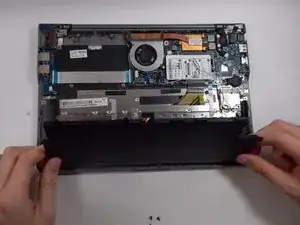

  14. Yx5CJUPFOSkqdL1c

    • Remove the battery from the laptop.

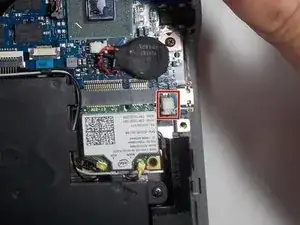

  15. UfHCyCWhKKYJvrGS
    UfHCyCWhKKYJvrGS
    M1lWlaOyrESlmqTR
    fp1HjCYKutryAXuF

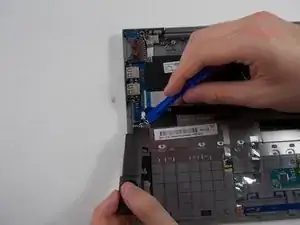

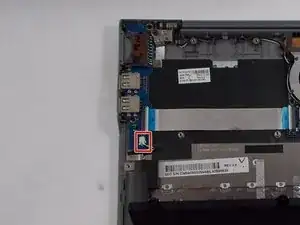

    • Using the plastic opening tool, gently release the connector for the speaker(s) you are replacing.

    • These will be found on opposite sides of where the battery was attached.

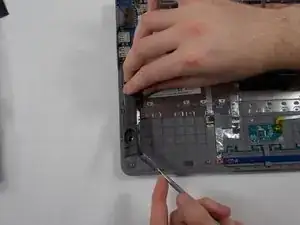

  16. adGcltbHMVRIs6GC
    adGcltbHMVRIs6GC
    sJUygQ6nl4l6eTex

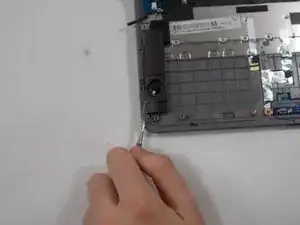

    • Using the metal spudger, scrape away the adhesive underneath the speaker that binds it to the laptop casing.

    • Remove the speaker from the case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
