Samsung NP550P5C-T01US RAM replacement

Geschrieben von: carlos
  • Kommentare: 1
Samsung NP550P5C-T01US RAM replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

8 - 10 Minuten

Einleitung

This is a guide for replacing the RAM of the Samsung NP550P5C-T01US for those individuals wanting to add more RAM or replacing a defective RAM. Firstly, you must remove the screws and place them in a safe location, so they won't get lost. Then remove the cover. After that remove your RAM pushing the clips on the sides inward and pull it out, remember to not touch the golden contacts to avoid any oil from your hands to block/disturb any current running from your device to the RAM. After all these steps are completed, you will just need to re-do all these steps in reverse order.

  1. WukvZ1mXEehBQfbU
    WukvZ1mXEehBQfbU
    A5ReYrUJI5OsXGLT

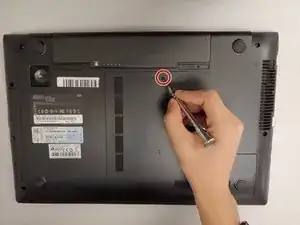

    • Unscrew the screws that are holding the cover in place.

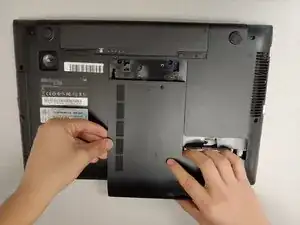

    • Slide open the cover of your RAM.

    • Remember to place screws in a safe location.

  2. MRUt2cG1FDXhhTEC
    MRUt2cG1FDXhhTEC
    3TXEPjJeZTswRSUH
    beavNPtL4HhKUeeu

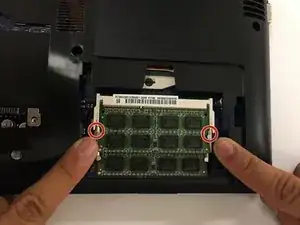

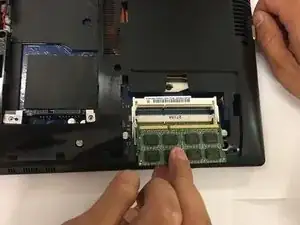

    • Remove your RAM pushing the clips on the sides inward and pull it out

    • remember to not touch the golden contacts

  3. BFLlxFe6q6dgB5hq
    BFLlxFe6q6dgB5hq
    2EaSpend1u44XiZE

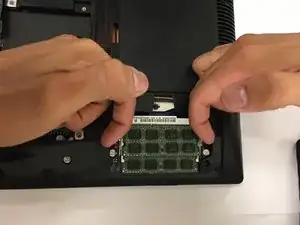

    • Slide in the correct RAM type

    • Push the RAM by the sides downward until you hear a click

    • re-do all of these steps in reverse order from step 2-1

Abschluss

To reassemble your device, follow these instructions in reverse order.
