Samsung NP700Z5AH Battery Replacement

Geschrieben von: Erik
  • Kommentare: 4
Samsung NP700Z5AH Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide details the process of replacing a dead or dying battery within the Samsung NP700Z5AH. This quick and simple process requires only two simple tools to complete.

  1. b1M6R3P6f4UbILew

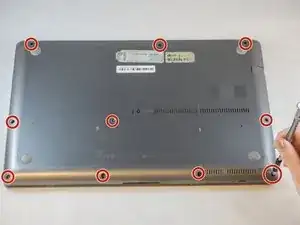

    • Remove the ten 6.6mm Philips#00 screws securing the lower case to the upper case.

  2. yi5OZyFao2IgqXi4
    yi5OZyFao2IgqXi4
    rBxjHebwlSWjkjUj
    eJ2O3TEFdIVHWpgN

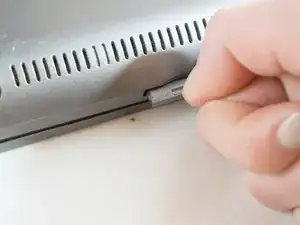

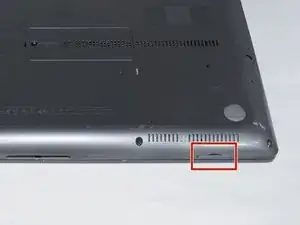

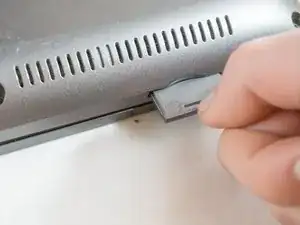

    • Using your fingers, pinch the edge of the SD card and pull to remove it.

  3. 2tOMshnySUWK1Uty
    2tOMshnySUWK1Uty
    qmKMgkL3exXKQlRj

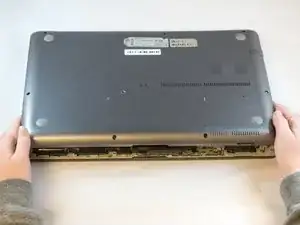

    • Wedge your fingers in between the upper case and the lower case

    • Gently pull the lower case away from the upper case to remove it

  4. QuUnOd6BsfWttyrA
    QuUnOd6BsfWttyrA
    XKkJ3UDyAxutKGrW

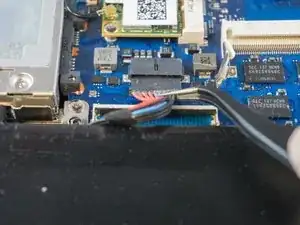

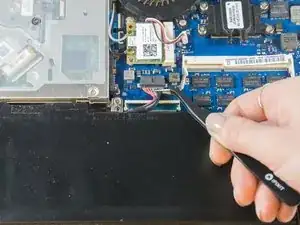

    • Using tweezers or your fingertips, carefully pull on the battery connector to disconnect it from the motherboard.

    • Be sure to pull straight backwards, or you risk damaging the wires.

  5. rIQd1GU5SAfC4GCQ

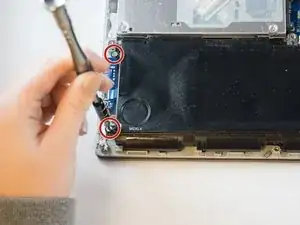

    • Remove the two 4.4mm Phillips#00 screws from the battery case.

  6. mkDfhHsGB2ZqK1uN
    mkDfhHsGB2ZqK1uN
    YNBsBrKcDwgrOIFM

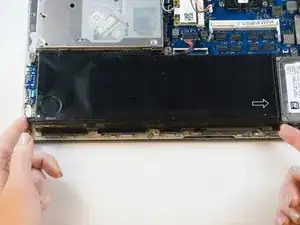

    • Place your fingers on the corner sections of the battery.

    • Lift to remove the battery.

    • If you choose to use tools to remove the battery be careful not to damage it. A damaged lithium-ion battery may leak dangerous chemicals and/or catch fire. Use only plastic pry tools.

    Because the battery is held down by clips at the front, i found it necessary to remove the four screw holding the hard drive to the right so that i could slide the battery to the right (indicated by the arrow on the battery) and out from under the clips.

    Chip McConnaha -

    Hey there Chip! Thanks for the comment! We were probably able to remove the battery without touching the hard drive because the laptop used to make this guide was damaged inside and out. I hope your new battery is running smoothly. Happy fixing!

    -Erik, Hannah and Annissa

    Erik -

    This is what I was looking for. My battery was partially out of the clips as a result of me tossing it, it came out easy but when I went to put it back in place it wouldn't slide in. I kinda “helped” it with out removing the HD. My optical drive isnt working so I have to take it apart again. It will super easy now with the added instruction. Thanks dude!

    Dan -

    What is the Replacement battery number! hard to find

    Avery Jackson -

Abschluss

To reassemble your device, follow these instructions in reverse order.
