Samsung NP700Z5AH Hard Drive Replacement

Geschrieben von: Erik

Kommentare: 5

Samsung NP700Z5AH Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will provide detailed steps to replace the hard drive in the Samsung device.

Werkzeuge

Schritt 1

Remove the ten 6.6mm Philips#00 screws securing the lower case to the upper case.

Schritt 2

Using your fingers, pinch the edge of the SD card and pull to remove it.

Schritt 3

Wedge your fingers in between the upper case and the lower case
Gently pull the lower case away from the upper case to remove it

Schritt 4

Using tweezers or your fingertips, carefully pull on the battery connector to disconnect it from the motherboard.
Be sure to pull straight backwards, or you risk damaging the wires.

Schritt 5

Remove the two 4.4mm Phillips#00 screws from the battery case.

Schritt 6

Place your fingers on the corner sections of the battery.
Lift to remove the battery.
If you choose to use tools to remove the battery be careful not to damage it. A damaged lithium-ion battery may leak dangerous chemicals and/or catch fire. Use only plastic pry tools.

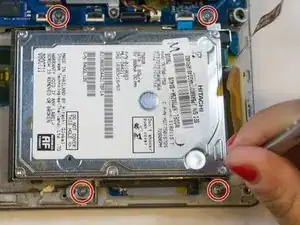

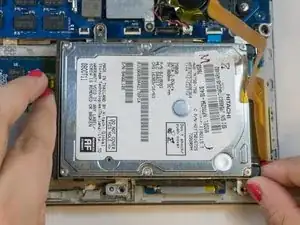

Because the battery is held down by clips at the front, i found it necessary to remove the four screw holding the hard drive to the right so that i could slide the battery to the right (indicated by the arrow on the battery) and out from under the clips.

Chip McConnaha - 06/01/18

Hey there Chip! Thanks for the comment! We were probably able to remove the battery without touching the hard drive because the laptop used to make this guide was damaged inside and out. I hope your new battery is running smoothly. Happy fixing!

-Erik, Hannah and Annissa

Erik - 08/01/18

This is what I was looking for. My battery was partially out of the clips as a result of me tossing it, it came out easy but when I went to put it back in place it wouldn't slide in. I kinda “helped” it with out removing the HD. My optical drive isnt working so I have to take it apart again. It will super easy now with the added instruction. Thanks dude!

Dan - 04/07/18

What is the Replacement battery number! hard to find

Avery Jackson -

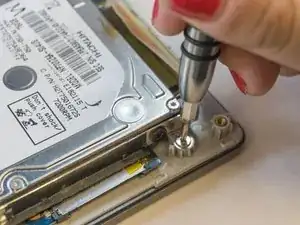

Schritt 7

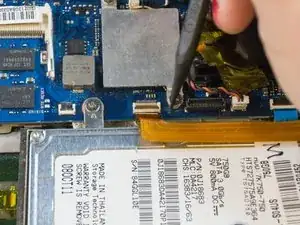

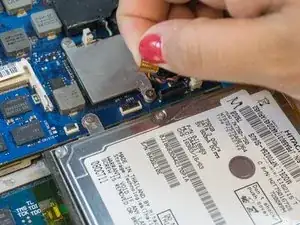

Using the tip of the spudger, flip up the small locking flap on the ZIF connector. Now you can pull the cable.
Be sure to pry up on the hinged flap, not the connector socket.
The white line on this ribbon cable marks the edge of the connection area. To reinstall, insert the cable into the connector up to this line, and then close the locking flap. If the cable doesn’t insert easily up to (or very near to) this line, it’s probably misaligned and needs to be gently removed and repositioned.
