Samsung NP700Z5AH RAM Replacement

Geschrieben von: Erik
  • Kommentare: 0
Samsung NP700Z5AH RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

1 - 3 Minuten

Einleitung

This guide is designed to help remove and replace the ram card in the Samsung NP700Z5AH.

  1. YraelJZWKDlI1qGy
    YraelJZWKDlI1qGy
    ANiAZTytmifHZDXQ

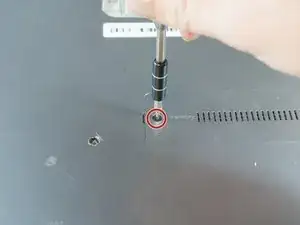

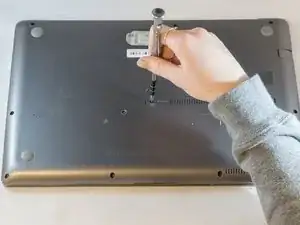

    • Using the Phillips #00 screwdriver, remove the 6.6mm screw from the memory slot cover.

  2. gZp4HPScVnvctsVm
    gZp4HPScVnvctsVm
    dUcK3EOiHRIxYpUZ
    ml1CjniJHqWZ2FnZ

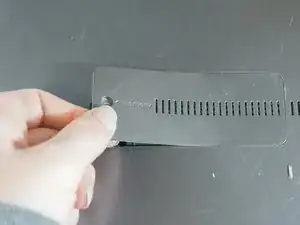

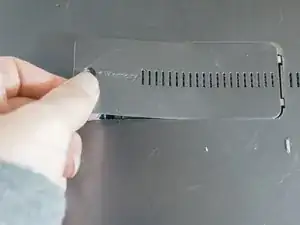

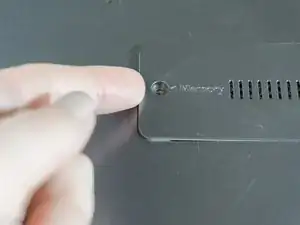

    • Wedge your finger underneath the edge of the memory cover. Grasp and pull the cover to the left to remove it.

  3. giBbWkLRSBxE4uHW

    • Using the tweezers, push the edges of the metal clasps holding the ram card away from the card. You should see the card pop upwards.

  4. CM5OkFRnJGNxIRMW

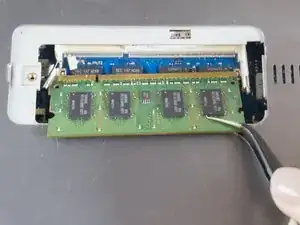

    • Using the tweezers, grasp the ram card and pull straight out to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
