Samsung NP900X4B RAM Replacement

Geschrieben von: Bryton Lawrence
  • Kommentare: 0
Samsung NP900X4B RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

This is a step by step guide to replacing your ram units in your laptop. Please ensure that your device is unplugged and completely powered down before attempting this repair.

Werkzeuge

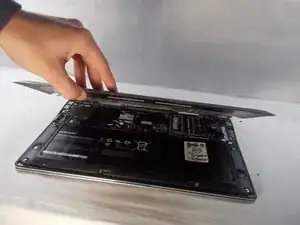

  1. 3WckvKYlJAOZ6ZyI

    • This guide should be attempted after the removal of the back panel is completed.

    • The Battery Removal guide demonstrates how to do this. The link to this guide is posed here. Samsung NP900X4B Battery Replacement

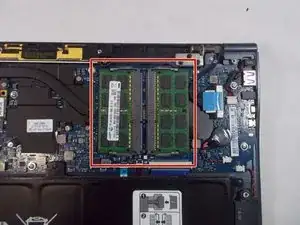

  2. uRnuT3BUwEfXq2Ra

    • Locate the two sticks or DDR3 RAM. They can be found in the upper right-hand corner.

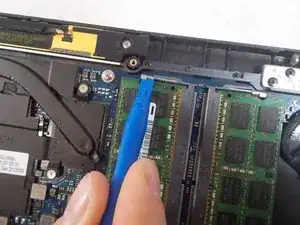

  3. I6XnvYWfsqKIsXD6
    I6XnvYWfsqKIsXD6

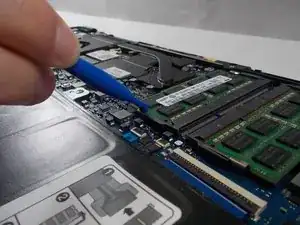

    GbXGZQEQUVfRmnep

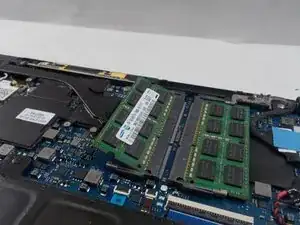

    T5ySQtmEDWfJowGL

    • Use a plastic opening tool to nudge one clamp holding one stick of RAM outward. If done correctly the clamp should move away from the stick of RAM. Do this with the clamp on the opposite side of the same stick or RAM. The stick of RAM will pop up when both clamps are released

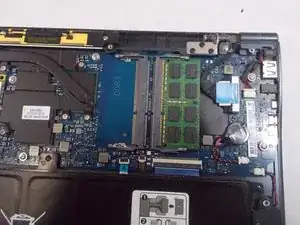

  4. 13YhQbCsto5SskjD

    • Repeat step 3 with the second stick of RAM. Again, when this is done correctly the RAM should pop up at an angle away from the laptop.

  5. ZPUGnrcYQPRRWrRd

    • Perform the previous steps in the reverse order to install two new sticks of RAM into the DDR3 slots. Make sure that the clamps click back in place. Failure to do so could result in non responsive sticks of RAM. If this is an issue, not to worry. Try taking the clamps off and reinstering the RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.
