Einleitung

Navigation buttons are used to operate the camera and its various settings and features.

  1. IGdQZS1QJkyRioAW
    IGdQZS1QJkyRioAW
    JLeR4pTIJlr2yaoO
    • Push the rubber viewfinder grip upward.

  2. eGdBvIaiWOSJntxW
    eGdBvIaiWOSJntxW
    kFWYU3RV1IXovxIV
    • Use the Phillips #00 screwdriver to remove one 6.4 mm screw in the center of the dial.

    • Remove the dial by lifting upward with your fingers.

  3. RvfS1P2RGWDCOypj
    RvfS1P2RGWDCOypj
    hBa3piweB6QVKCmN
    tQDYyH2YXNWnDU3X
    • Use the Phillips #00 screwdriver to remove the four 5.5 mm screws surrounding the viewfinder.

    • Use your fingers to lift the plastic viewfinder cover upward.

  4. LNjceZHlWZfL12hT
    LNjceZHlWZfL12hT
    aNWWWQQEhUmVt5fl
    • Use the Phillips #00 screwdriver to remove the two 5.5 mm screws from the right side of the camera above the SD card port.

  5. ZfYWL2iCFNMriyxg
    • Use the Phillips #00 screwdriver to remove one 5.5 mm screw on the left, above the HDMI port.

  6. j5tgvVQLmQ2VYaZv
    • Use the Phillips #00 screwdriver to remove the five 5.5 mm screws from the bottom, near the battery compartment.

    • Use the Phillips #00 screwdriver to remove one 3.8 mm screw from the bottom of the hand grip, below the battery compartmen.

  7. rPQiYRuoBe1HBP3v
    rPQiYRuoBe1HBP3v
    fAfWSqbp2j3qTVQv
    jAZZmNcUKwIwGfrL
    • Use a plastic opening tool to separate the back cover from the front cover.

    • Pry the back cover in this order: bottom, right side, left side.

  8. B6naUETNiVJdYOCW
    B6naUETNiVJdYOCW
    oqArXtXFGNAjphHA
    • Use your fingers to pull the back cover away from the front cover.

    • Do not completely separate the back cover from the front cover as two cables hold these components together.

  9. 2HR6BWnVsdZZvBjq
    2HR6BWnVsdZZvBjq
    OlNJEt6IkckntOCK
    YG146ZGfNdhcMvwI
    • Use tweezers to pull the two ribbon cables horizontally out of their clips.

  10. ltjmQpXnbRC5PtWu
    • Use the Phillips #00 screwdriver to remove the six screws (three silver 3.5 mm screws and three black 4.2 mm screws).

  11. iLRY5AgHBSjBVaiK

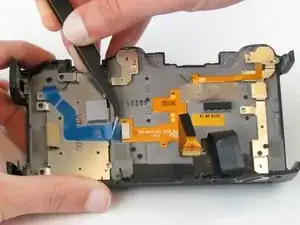

    • Use the tweezers to pull the blue ribbon cable horizontally out of its clip.

  12. eBuQ4PnATOYDJ2rN
    eBuQ4PnATOYDJ2rN
    pnBYqnDyJJBtd3k3

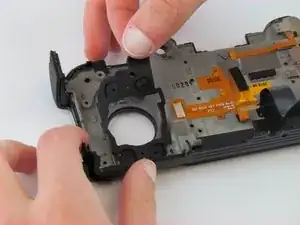

    • Use your fingers to remove the metal piece with the blue ribbon cable and the rubber buttons lying underneath.

Abschluss

To reassemble your device, follow these instructions in reverse order.
