Samsung NX1000 Front Lens Cover Replacement

Geschrieben von: Yesenia
  • Kommentare: 1
Samsung NX1000 Front Lens Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

If you need to replacement your front lens, here is the guide to do so. Be sure to turn off your camera and take out the battery before you being your replacement.

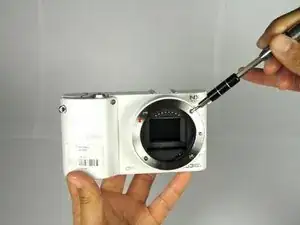

  1. LnboMyTvgiFPtDvC
    LnboMyTvgiFPtDvC
    EJZbQDEXJnOBEVQJ

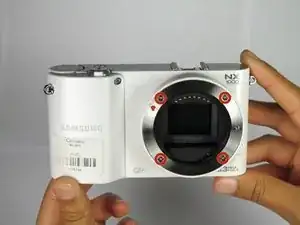

    • Unscrew the four 5.5 mm #000 Philips screws that are on the metal ring with a Philips #000 screwdriver.

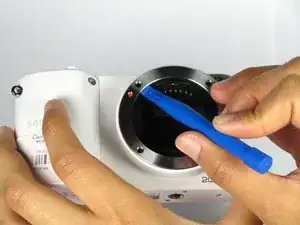

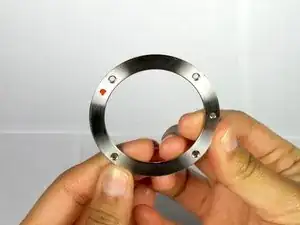

  2. DlfUQs1fStQK13AE
    DlfUQs1fStQK13AE
    mqTyXQAbZLKtSSWU

    • Remove the metal ring using the plastic opening tool.

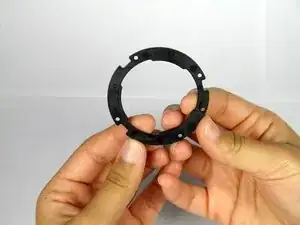

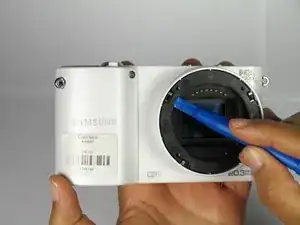

  3. GNZrwlPUOtUVw2Sq
    GNZrwlPUOtUVw2Sq
    pnBiZTGlAKBCfFew

    • Remove the black plastic ring using the plastic opening tool.

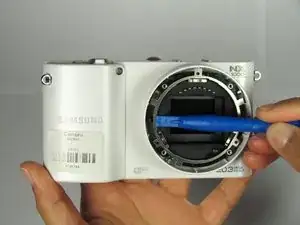

  4. eVuOaqiXNNeXDCwI
    eVuOaqiXNNeXDCwI
    uLVjeAkBVenQyLKv

    • Remove the thin metal ring.

  5. ldBsjZ1SiWaRJf1c

    • Remove the three 4.5 mm Phillips #000 head screws located inside the cover with a Phillips #000 screwdriver.

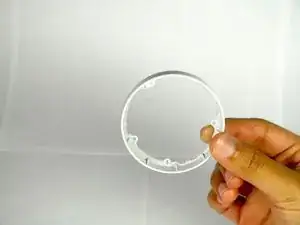

  6. vucLNuDShHiEJJh1
    vucLNuDShHiEJJh1
    MQjSSWlysDJHUO1T

    • There are a few loose metal parts and springs. Be careful not to shake the device.

    • Remove the white plastic ring.

    there`s a small spring part

    where does that part go in that camera?

    Affendi Hashim -

Abschluss

To reassemble your device, follow these instructions in reverse order.
