Einleitung
This guide will show you how to replace the lens assembly on the Samsung NX2000. It will show you a step by step replacement guide of how to remove parts of lens successfully. Begin with making sure your camera is turned off and removing the lens.
-
-

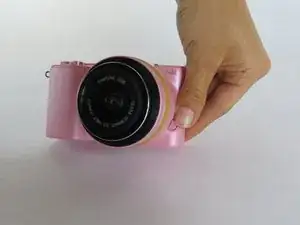

Begin by pressing the lens lock button to the right of the lens.
-

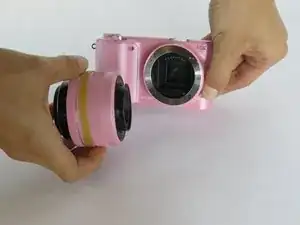

Release the button and turn the lens in a clockwise motion until you have removed the lens.
-
-
-
Make sure your camera is turned off and flip your device upside down.
-

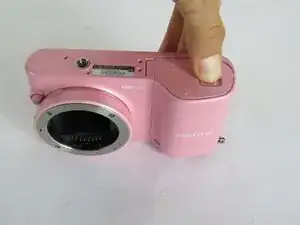

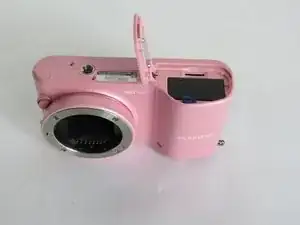

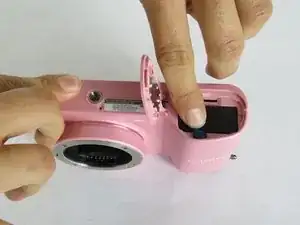

Slide the battery switch to the left and open the battery compartment.
-
Push the blue button up inside the battery compartment and remove the battery.
-
-
-
Remove the four 4mm screws highlighted here with the Y0 screwdriver.
-

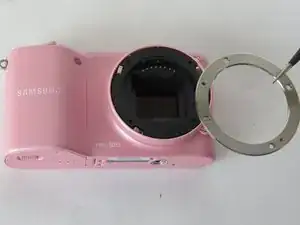

Using a tweezer, gently remove the outer silver lens lining.
-

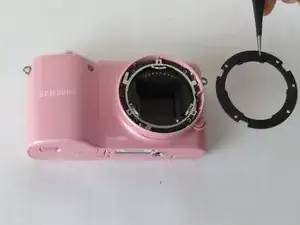

Underneath will lie a black ring, which needs to removed using the same tweezer.
-
-
-
Remove the final silver ring from the lens assembly using a tweezer.
-

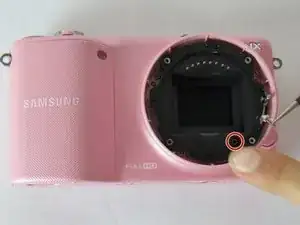

Using a slanted tweezer, remove the highlighted pyramid screw from the compartment shown.
-

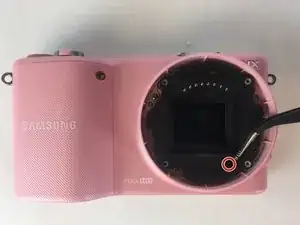

Remove the spring from the same compartment using the same tool.
-
To reassemble your device, follow these instructions in reverse order.
