Einleitung
The replacement of your screen takes a little work. With the right equipment though it is not too difficult to do. Just be ready to unscrew a lot of screws.
Ersatzteile
-
-
Flip the camera over so that the bottom of the camera is up.
-
Push the battery switch towards the back of the camera.
-
-
-
Locate the blue switch above the battery pack.
-
Slide the blue switch into the camera in the direction of the arrow on the switch. When the switch has been pushed in the battery will spring up.
-
-
-

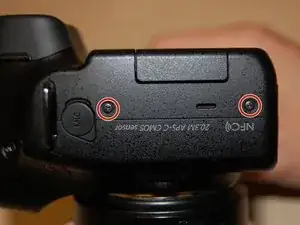

Unscrew the nine 4mm Phillips head screws surrounding the body of the camera. They are located on the bottom of the camera and both sides of the camera.
-
-
-
Pull the viewer out from the camera and then up.
-

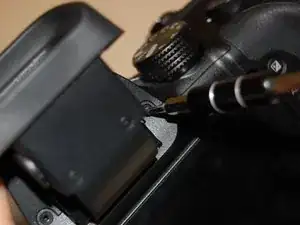

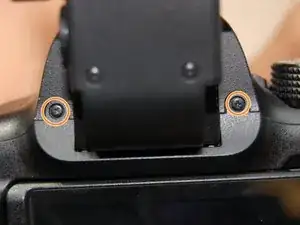

Unscrew the two black 4mm Phillips head screws under it.
-
-
-
Once the screws are all removed, place the camera face down, with the screen facing up.
-

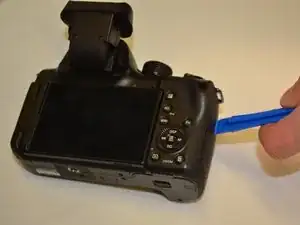

Pry open the body using the plastic opening tool.
-
-
-

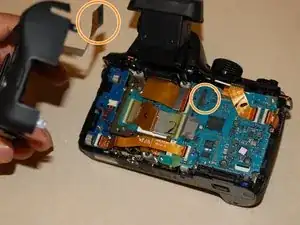

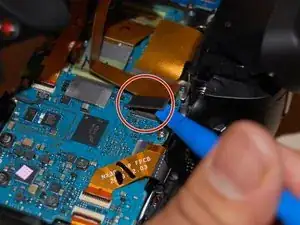

Then use the plastic opening tool to dislodge the Ribbon Cable, located near the top of the camera, from the Circuit Board.
-

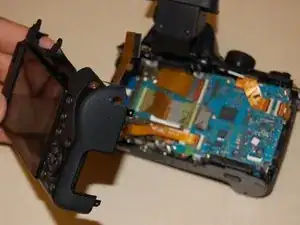

The Ribbon Cable will be disconnected from the Circuit Board when you are done.
-
To reassemble your device, follow these instructions in reverse order.
