If your camera has been exposed to high heat or prolonged periods of time in high temperature conditions, your camera's image sensor could be shot. A bad image sensor can cause a very distorted image or in some cases even a completely black screen when turned on.

  1. MxLfQKgUFlB4kZFp
    MxLfQKgUFlB4kZFp
    KgHWCBjibggJwhBW
    • Pull the switch on the bottom of the camera back with your thumb.

  2. yglUgNT3pNJLk4GQ
    yglUgNT3pNJLk4GQ
    ZAG3eGDrtSGHobLZ
    • Push second switch(blue) forward with your thumb.

  3. 1kbdOtchAFNOXqQc
    • Pull out battery.

  4. DM6THNAek4mePMmL
    DM6THNAek4mePMmL
    Aran1Kb3SXMZnl2M
    rPHXD16ZrnPvbxQx
    • Open the screen exposing the hinge cover and place the plastic opening tool inside.

    • Pry the hinge cover up by moving the plastic opening tool in a downward motion.

    • Remove the black 4mm Phillips #000 screw that is revealed once the hinge cover is removed.

  5. LM1DlWsOYAN1USY5
    LM1DlWsOYAN1USY5
    ZxXAITNRa3XuiUAV
    ookoEvSkEYDDfLC3
    • Unscrew the two 4 mm Phillips #000 screws on the right hand side of the camera using the screwdriver.

    • Unscrew five more 4 mm Phillips #000 screws that are located at the bottom of the camera with the screwdriver.

    • In the second step, do not the remove the two 4 mm Phillips #000 screen on the screen.

    • Remove the last exterior 4 mm Phillips #000 screws on the left hand side of the camera with the scredriver.

  6. 1Ptbfut2d4RSqmVV
    1Ptbfut2d4RSqmVV
    WEQQTXTBDU6hYD2s
    • Use the plastic opening tool in a downward motion around each side of the camera to pry the casing open.

    • The casing should be removed easily; you shouldn't have to use much force.

  7. EgeOWpolhRlKXBME
    EgeOWpolhRlKXBME
    VOWkHBUm6iIlDtT1
    • Locate the black ribbon at the bottom left of the camera's interior.

    • Place the plastic opening tool under the black ribbon connector.

    • Remove the cable by moving your plastic opening tool in a downward motion.

    • There is zero to little force needed to remove this ribbon.

  8. VvhaoDULkOVm2LNp
    VvhaoDULkOVm2LNp
    aV1LgZGYlWPBIFNQ
    4frODkGFBFKXJtOV

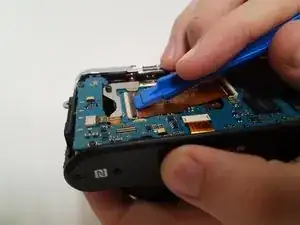

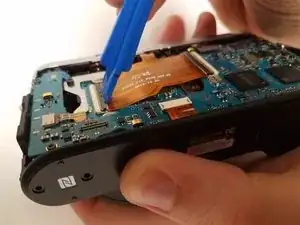

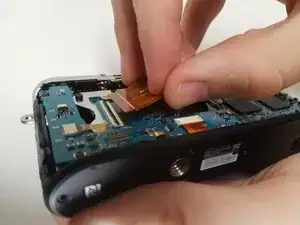

    • Lift the black latch of the left main ribbon connector using a wide-set plastic opening tool in a downward motion.

    • Use your fingers to disconnect the cable.

    • There are five ZIF cables total to be removed.

  9. YfeVSULkFSbOLSEo
    YfeVSULkFSbOLSEo
    XZuM2HAfrXwsFJQo
    hOAoSyEdHPRyws6C

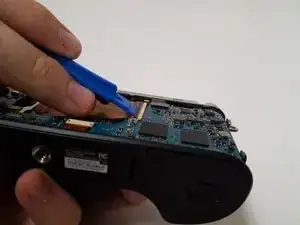

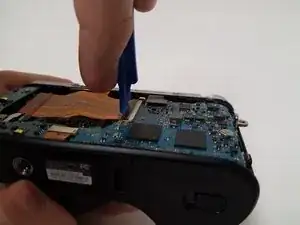

    • Use the wide-set plastic opening tool to lift the latch on the right main ZIF cable in a downward motion.

    • Disconnect the cable using your finger.

  10. oJhcHW6LsRRQRC6S
    oJhcHW6LsRRQRC6S
    cGdlNe6sj6vyBL1C

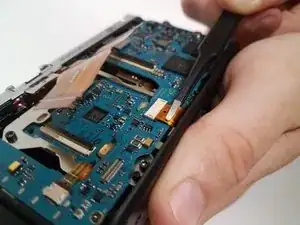

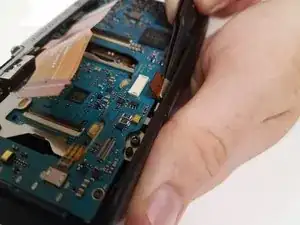

    • Locate the ZIF cable at the bottom of the main board.

    • Disconnect the cable with the tweezers by pulling it away from where the cable is connected.

    • Be careful not tug too hard on the cable as you can damage it.

  11. GiC1TofCHPGyYYnh
    GiC1TofCHPGyYYnh
    tC1BQmsvQ4SeYrjD

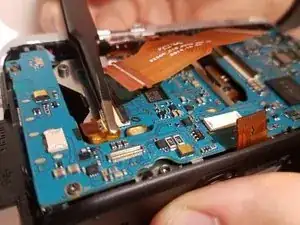

    • Locate the skinny ZIF cable on the left side of the main board.

    • Disconnect the cable with the tweezers by pulling it away from where the cable is connected.

    • Be careful not tug too hard on the cable as you can damage it.

  12. uFhDgtxDFw3kFN3Q
    uFhDgtxDFw3kFN3Q
    ETTyj5lhAOuueJSK
    eMJfwdDqfOaAEEnd

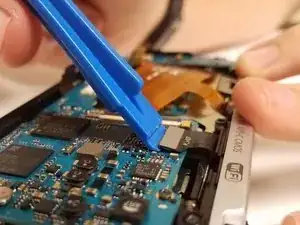

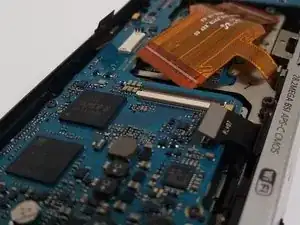

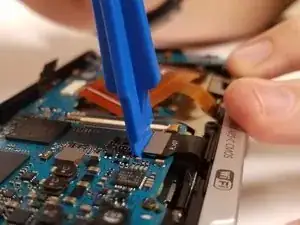

    • Locate the black cable connected at the top right of the main board.

    • Place the wide-set plastic opening tool underneath the gray connector and carefully pry it up.

    • It will easily pop up.

  13. EZLqXOaKsGMsADCt

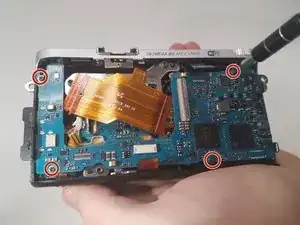

    • Remove the 4 black 4-mm Phillips #000 screws located near each corner of the main board.

    • Lift the board out of the casing and carefully put it somewhere safe.

  14. MJ12qkVJWHRPUW6M
    MJ12qkVJWHRPUW6M
    hCirKjSOhUNdGneS

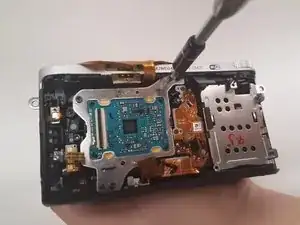

    • Remove the three black 5-mm T6 type screws using a Torx screwdriver located along the metal casing of the image sensor.

    • The image sensor is very sensitive, be sure not to smudge the filter covering.

    • Pull the image sensor out and it can now be replaced.

Abschluss

To reassemble your device, follow these instructions in reverse order.
