Samsung Notebook 7 Spin NP740U3MK01US Hard Drive and SSD Replacement

Geschrieben von: Minje Sa
  • Kommentare: 2
Samsung Notebook 7 Spin NP740U3MK01US Hard Drive and SSD Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

The hard drive and SSD of your computer is the main data storage unit of your device. Overtime the storage unit is susceptible to stop working as originally intended. In many cases, the data in the hard drive/SSD may become corrupted. If you’re experiencing any problems with loading files in your computer, consider replacing the hard drive/SSD.

This is the Hard Drive and SSD replacement guide for Samsung Notebook 7 Spin NP740U3MK01US. If you suspect that your hard drive is failing or want faster processing speed and capacity upgrades, please follow this guide.

  1. Hx2vdSPBSZL6oIHk

    • Flip your laptop over so that the back is face up.

  2. uhZCsAoiwgRtlGPA
    uhZCsAoiwgRtlGPA
    m5oitTrWY6pQMu6d

    • Use a Phillips #00 screwdriver to remove the four 6.5mm screws and the six 4.5mm screws that secure the back plate.

  3. 15kZI2dUaRNuGdDD
    15kZI2dUaRNuGdDD
    MelW4FSxBIYKCEPZ

    • Use a plastic opening tool to remove the back plate from the laptop.

    • It is recommended that you start from a corner then run the tool along the edge of the back plate.

  4. CLEjvVbEIr2pO6Ds
    CLEjvVbEIr2pO6Ds
    ViAMxqfikBZRaGKT

    • Use a Phillips #00 screwdriver to remove the three 4.5 mm screws holding the battery in place.

  5. w3xUaQZCbqOKq6F5
    w3xUaQZCbqOKq6F5
    xqFuLxVrVNF3PRoZ
    RoDZXbqDa1CL2FYN

    • Use a spudger to pry the battery connecting cable from the laptop and remove the battery.

    • Using the metal spudger may severely damage the internal components in your device.

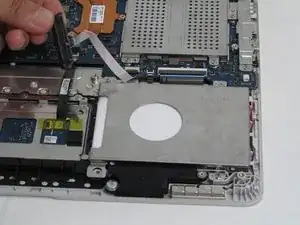

  6. STNUoiaf6C1i3RRa

    • Remove the connection cable from the hard drive.

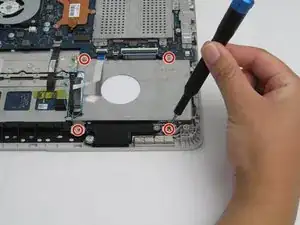

  7. FbjLGBYeOyQnGXMK

    • Use a Phillips #00 to remove four screws from the hard drive cradle.

  8. nEdKPQAil3h2cmQY

    • Pull the hard drive away from the cradle and remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Minje Sa

Mitglied seit: 16/09/19

105 Reputation

2 Kommentare

Would you point out where the SSD slot would be?

aroyphillips -

this was very helpfull!, im not sure where i could find the SSD though

Kaleb Miller -
