Samsung Notebook 7 Spin NP740U3MK01US RAM Replacement

Geschrieben von: William Edwards
  • Kommentare: 1
Samsung Notebook 7 Spin NP740U3MK01US RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

RAM replacement for the Samsung Notebook 7 Spin NP740U3M-KO1US. RAM will potentially need to be upgraded during the normal life cycle of your device. RAM sticks for replacement can be found in the replacement parts link in the Additional Information section on the device page.

If you’re experiencing any issues with your RAM, you may need to get it replaced. Follow the instructions in this guide to successfully remove the RAM from the device.

  1. Hx2vdSPBSZL6oIHk

    • Flip your laptop over so that the back is face up.

  2. uhZCsAoiwgRtlGPA
    uhZCsAoiwgRtlGPA
    m5oitTrWY6pQMu6d

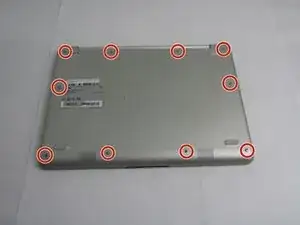

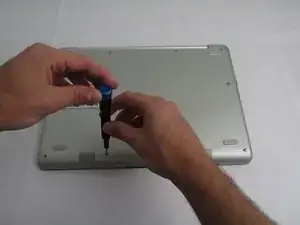

    • Use a Phillips #00 screwdriver to remove the four 6.5mm screws and the six 4.5mm screws that secure the back plate.

  3. 15kZI2dUaRNuGdDD
    15kZI2dUaRNuGdDD
    MelW4FSxBIYKCEPZ

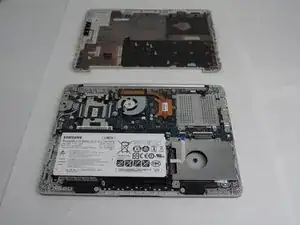

    • Use a plastic opening tool to remove the back plate from the laptop.

    • It is recommended that you start from a corner then run the tool along the edge of the back plate.

  4. CLEjvVbEIr2pO6Ds
    CLEjvVbEIr2pO6Ds
    ViAMxqfikBZRaGKT

    • Use a Phillips #00 screwdriver to remove the three 4.5 mm screws holding the battery in place.

  5. w3xUaQZCbqOKq6F5
    w3xUaQZCbqOKq6F5
    xqFuLxVrVNF3PRoZ
    RoDZXbqDa1CL2FYN

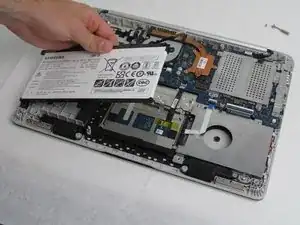

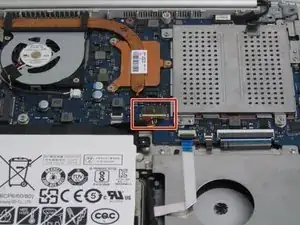

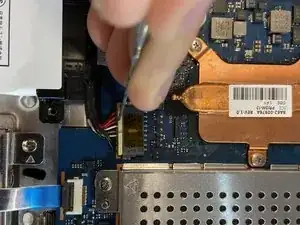

    • Use a spudger to pry the battery connecting cable from the laptop and remove the battery.

    • Using the metal spudger may severely damage the internal components in your device.

  6. QcJ6BuIGbgbTGXkC
    QcJ6BuIGbgbTGXkC
    LixGcGZZgQl5XhAv

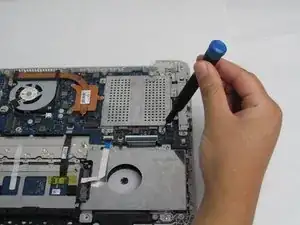

    • Use the Phillips #00 screwdriver to remove the five 4.5 mm screws.

  7. I2uETaEv4BKgI1Vf
    I2uETaEv4BKgI1Vf
    RTFsZMCIV1iLUFg4

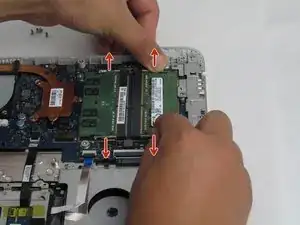

    • Push these clamps outwards away from the RAM. The RAM should pop out.

    • Remove the RAM from the device. Repeat the same step for any additional RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

William Edwards

Mitglied seit: 16/09/19

135 Reputation

Ein Kommentar

If my laptop already has 12 GB of RAM, is it possible to increase it to 24 GB? what would the limit be? I have read somewhere else it is 12 GB.

In that case, would the remaining slot be useless, or does my laptop come with two 6 GB RAM boards, one for each slot

David Hijar -
