Use this guide to remove and replace a dysfunctional lens on the Samsung PL20 digital camera.
Werkzeuge
Ersatzteile
-
-

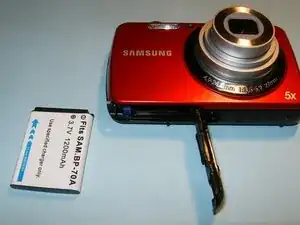

Remove the battery and the memory card from the device.
-

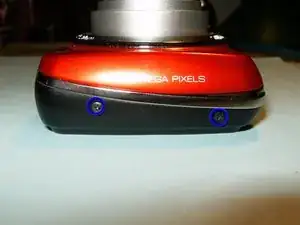

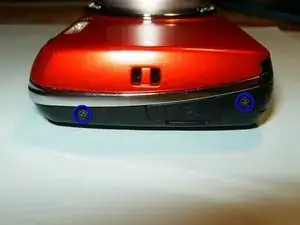

Remove the two screws on the side of the device, to the left of the camera lens.
-
-
-

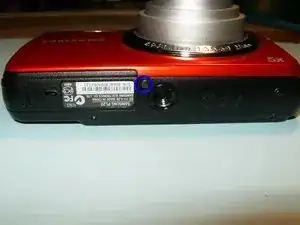

Remove the single screw from the bottom of the device.
-
Remove the two screws on the side of the the device, to the right of the camera lens.
-

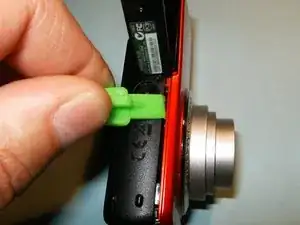

Using a plastic opening tool, pry the outside casing apart. Start from the battery compartment and work around the seem of the casing.
-
-
-
Remove the back panel, revealing the LCD screen.
-

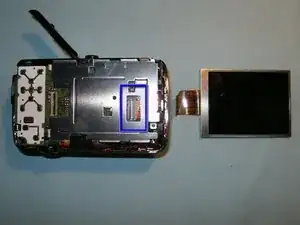

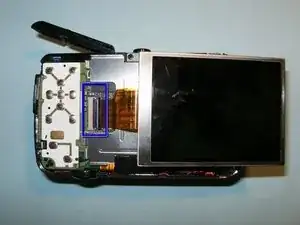

Pull the LCD screen out of its holder. Once you have access to the connecting strip, flip the clip upwards releasing the screen completely and remove.
-
-
-

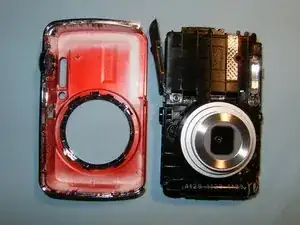

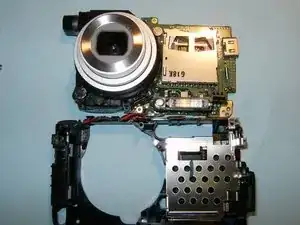

Gently pull the front panel from the device.
-

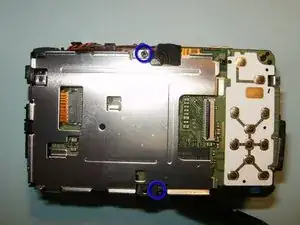

Remove the two screws attaching the LCD screen holder to the device.
-

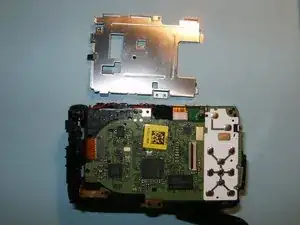

Remove the screen holder from the rest of the device.
-
-
-

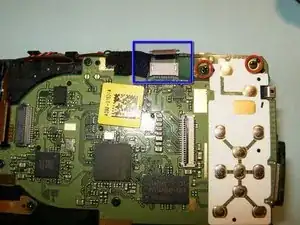

Flip the grey clip upwards, releasing the connector from the device.
-
Disconnect the ribbon cable extending from the left side.
-
Disconnect the ribbon cable extending from the button bar.
-
Remove the 2 screws.
-
-
-

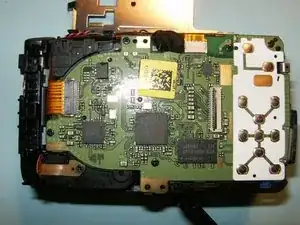

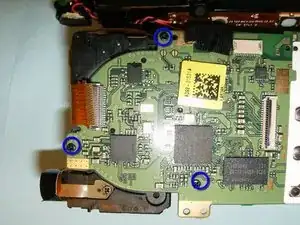

Remove these 3 screws. releasing the lens from the logic board.
-

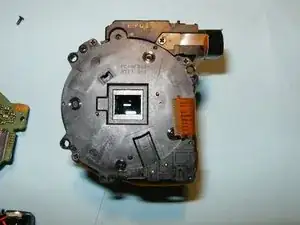

Remove the lens from the logic board.
-
To reassemble your device, follow these instructions in reverse order.
Ein Kommentar
Beware there is a capacitor that stores a charge even when the battery is removed. On my camera i touched it, it created a short circuit, i got a shock, and it killed my camera.
