Einleitung
This is a simple replacement, requiring no tools.
-
-

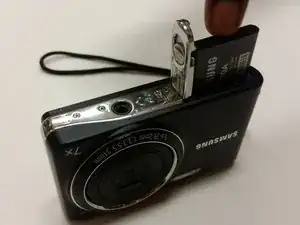

Flip Samsung PL200 over to access battery/SD card compartment on the bottom. There is a sliding release button (labeled 'OPEN') that can be slid sideways to open the battery/SD card compartment.
-

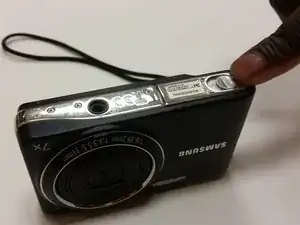

Slide this button in the direction that the arrow is pointing to release and open the spring loaded battery/SD card compartment door. Once opened, the battery should be visible.
-
-
-

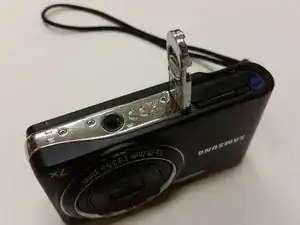

Once the battery/SD card compartment is opened, in order to remove the battery, you must push the small blue release button.
-
This will release the spring loaded battery.
-

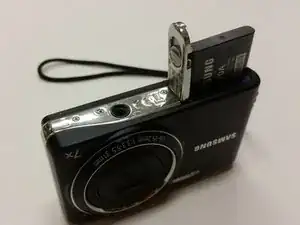

Use your fingers to remove the old battery.
-
-
-

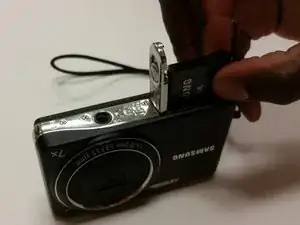

Insert the new battery into the battery slot.
-
Push it down with your finger until the blue release switch re-engages over top of the battery.
-

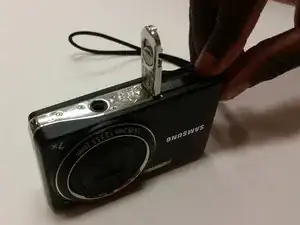

Close the battery/SD card compartment.
-
After replacing the battery, be sure to connect your charger cable and charge the new battery fully before using it.
