Replace a broken, cracked or frozen screen on your Samsung PL200 digital camera. Tools are required to access interior camera components.
Werkzeuge
-
-

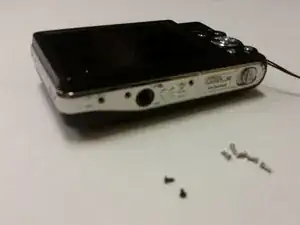

Remove the six 3 mm external screws from the camera base using the Phillips #000 screwdriver.
-
-
-
Remove the 3 mm screw holding the circuit board.
-
Use a pair of tweezers to detach the two ribbon cables connecting the circuit board to the camera.
-

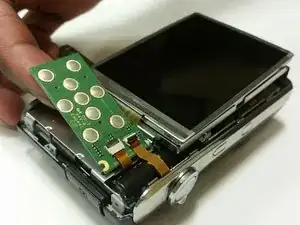

Remove the circuit board.
-
-
-

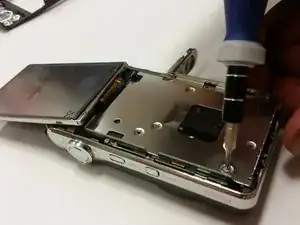

Flip the LCD screen forward and remove the two 3 mm screws holding the metal midframe using a Phillips #000 screwdriver.
-

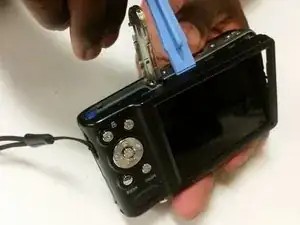

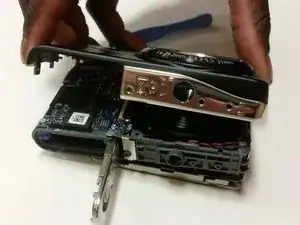

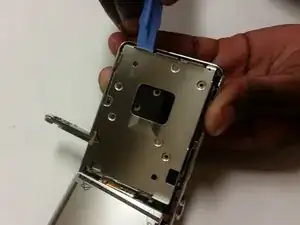

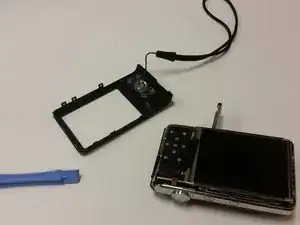

Remove the midframe using an opening tool.
-
-
-

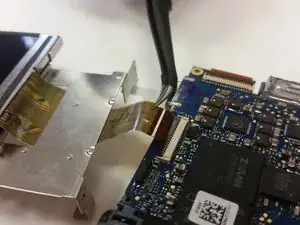

Lift the black strip and the ribbon will easily come out.
-

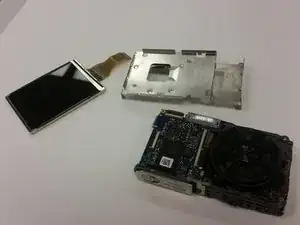

After doing this, the LCD screen will be separated from the camera.
-
To reassemble your device, follow these instructions in reverse order.
