Einleitung

In this guide you will take the following steps to replace the motherboard in the Samsung PL200.

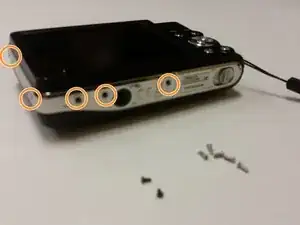

  1. fhmDDRWhRSQFMsHJ
    fhmDDRWhRSQFMsHJ
    cL3vPSDI1JGqR41e
    • Remove the two 3mm black external scews from he camera's side using the #000 Philips Screwdriver.

    • Remove the five 3mm silver external screws from the camera's side and bottom using the #000 Philips Screwdriver

  2. IsMdWQiA2Kdo2WpD
    IsMdWQiA2Kdo2WpD
    yvY4MOg14yPPWIu3
    JUG2ADTIFZoegcPe

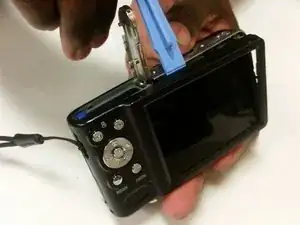

    • Use the Plastic Opening Tool and your finger to pry off and remove the external cover.

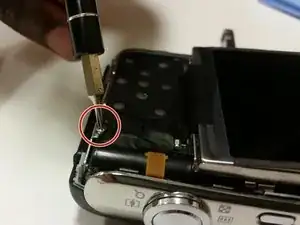

  3. KNrg3LEVCgNlJfsC
    KNrg3LEVCgNlJfsC
    YmWLuqF3mMnGWCNZ
    HjCD2GS1KwVmVbE3

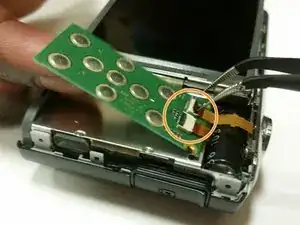

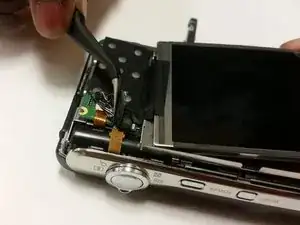

    • Remove the 3mm screw holding the circuit board using the #000 Philips Screwdriver.

    • Remove any tape on the circuit board and screen.

    • Using Tweezers, unplug the wires from the circuit board and remove it.

  4. r4ZLObYMtGJOoJHX
    r4ZLObYMtGJOoJHX
    AjTEhLUsuOwjgBKH

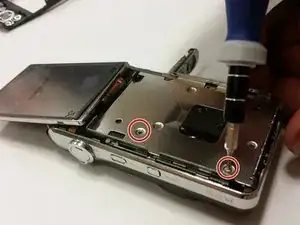

    • Flip the LCD screen forward and remove the two 3mm screws beneath it using the #000 Phillips Screwdriver.

    • Remove the metal brace using the Plastic Opening Tool.

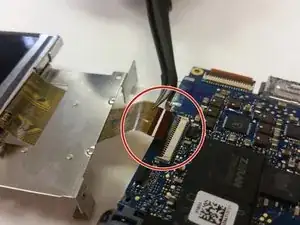

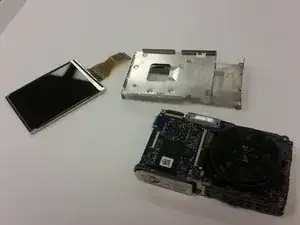

  5. nJuhXtM2rPXR5rGE
    nJuhXtM2rPXR5rGE
    UAXYZcR5AYG3dgnA
    • Lift the black latch where the screen plugs into the motherboard and pull the cord to remove the screen

    • Separate the screen and the metal brace from the camera body.

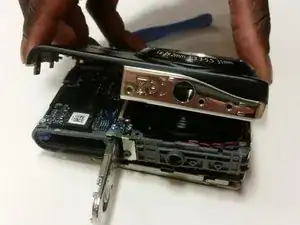

  6. kXAmm3jEkqjcDVid
    • Remove the front cover of the camera using your fingers and the Plastic Opening Tool.

  7. VUnFbw2UrIVYAXKn
    • Set the screen and metal brace aside

    • Open the camera's battery cover.

  8. MhCOKcVceHXWSAQ4

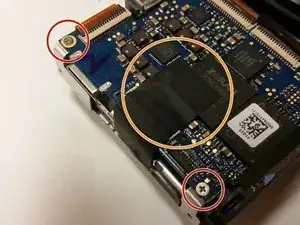

    • Using the #000 Phillips Screwdriver, remove the two 3mm screws holding the motherboard in place.

    • There may be tape still on the motherboard, if so, remove it.

  9. pIkBBXybPBdlcPmf
    pIkBBXybPBdlcPmf
    AIhKOjDYB5suxtvD
    MIjr4MQEpFAlANih

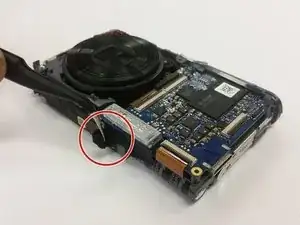

    • Use the Tweezers to remove the tape from bottom of the camera

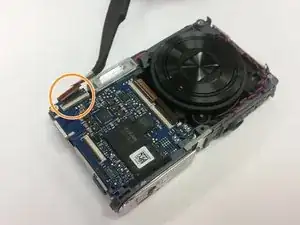

    • Use the Tweezers to disconnect the lens unit cord that is at the bottom of the camera from the motherboard.

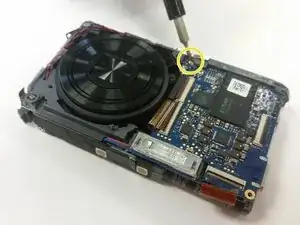

    • Remove the last 3mm screw that holds the motherboard in place.

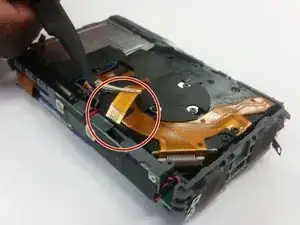

  10. L6TqiMEGMlofrTaV
    L6TqiMEGMlofrTaV
    QZJEJvL2uQoQlSQr
    KqI1ukmI5noNyiib

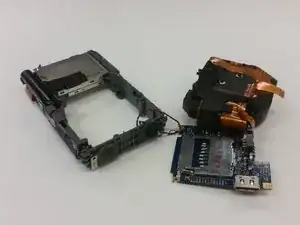

    • Use the Tweezers to unplug the small lens unit cord from the camera frame on the back side of the camera.

    • Gently lift the lens unit from the frame.

    • Separate the lens unit, motherboard, and camera.

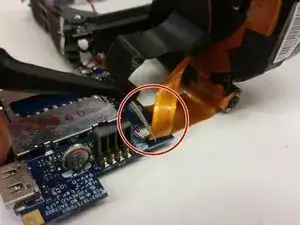

  11. hMjeSYbifZSnGGSo
    hMjeSYbifZSnGGSo
    gMlKTJjSFmnEI4ZV
    1uupQQ53sHGTBrWo

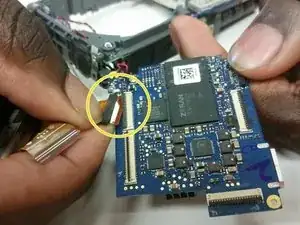

    • Use the Tweezers to remove the small cord from motherboard.

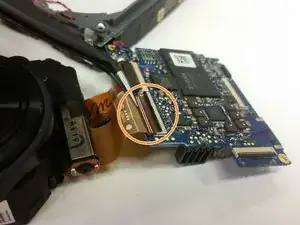

    • Use the Tweezers to remove the first large lens unit cord from the motherboard.

    • Use the Tweezers to remove the second large lens unit cord from the motherboard.

  12. qTFCK2hYwbZLw12E
    qTFCK2hYwbZLw12E
    JArW2qkOyqPuVKpZ
    • Desolder the four wires from the old motherboard.

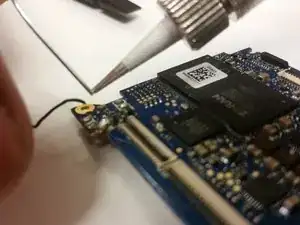

  13. K3mgZvvuNLMTFCMV
    K3mgZvvuNLMTFCMV
    sZJMBcHmnDWn2sla

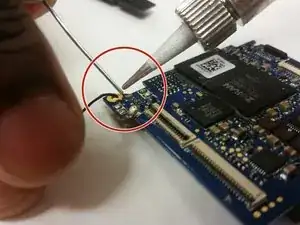

    • Last, solder on a functional motherboard at this stage and reassemble the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
