Samsung POWERbot R7070 Power Brush Replacement

Geschrieben von: Christine Erdtsieck
  • Kommentare: 6
Samsung POWERbot R7070 Power Brush Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

2 - 3 Minuten

Einleitung

Acquire better quality of cleaning from your POWERbot with a clean brush. This can resolve the C 01 error code. The POWERbot's emergency switch should be turned off before handling the device.

  1. QUExBknwYWmmqeGK

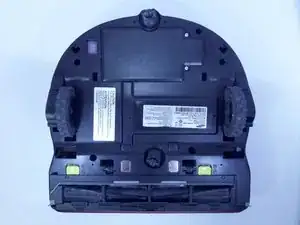

    • Flip the device over to access the bottom of the vacuum with the brush compartment positioned close to you.

  2. CiJ6OrTsEpGZm1xs

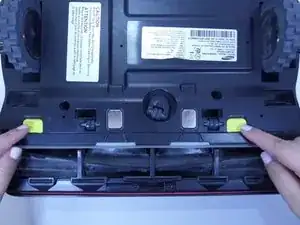

    • Slide up on the two yellow sliding tabs to unlock the brush compartment.

  3. sb5LFrj6DiSpUocK
    sb5LFrj6DiSpUocK
    cCnKXL5KPrgdYPNg
    HBdbIYHHyPmuWnWl

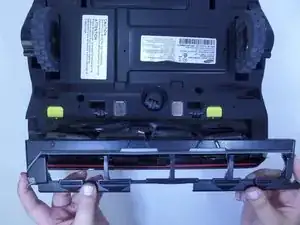

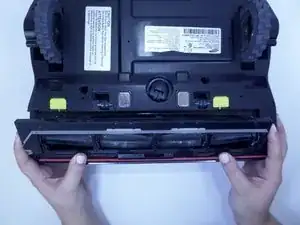

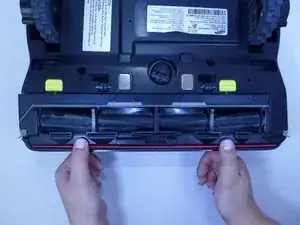

    • Press down on the outer edge of the brush cover to tilt the brush cover up. Grab the newly exposed inner edge and lift out the brush cover.

  4. fJGaEcGUSysIlaxN
    fJGaEcGUSysIlaxN
    qw42iFCZoKGue6Br

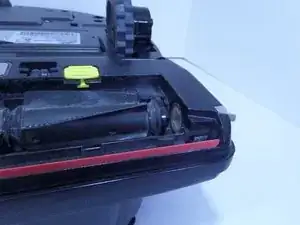

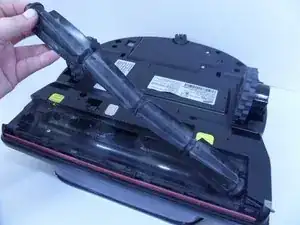

    • Pull up the left side of the brush and lift out of the brush compartment.

    • When replacing the brush, the square peg on the right end of the brush must be correctly oriented with the square hole on the right end of the brush compartment.

    Anyone know where I can actually buy a brush seems to be out of stock everywhere?

    T J -

Abschluss

To reassemble your device, follow these instructions in reverse order.
