Samsung POWERbot R7070 Right Driving Wheel Replacement

Geschrieben von: Lauren Nubla
  • Kommentare: 4
Samsung POWERbot R7070 Right Driving Wheel Replacement

Schwierigkeitsgrad

Moderate

Schritte

19

Zeitaufwand

15 - 30 Minuten

Einleitung

Replace the right driving wheel of your POWERbot to end movement problems . To resolve the C 03 error code, replace the right driving wheel.

  1. Jey3JUgsKTqUQDA2

    • Turn the emergency switch off.

  2. fnJATdcpgHeIjLYs
    fnJATdcpgHeIjLYs
    KuX2SroW5S5m5P13

    • Remove the two exposed screws on the top right of the device.

  3. LoqZFmAbFTpVVNAb

    • Lift the cover plate to expose the battery.

  4. mAORAQmChOWaqUgO
    mAORAQmChOWaqUgO
    dXJtaOXPX5QEau6d

    • Using one hand, pinch the white plastic connector where the battery's wiring connects the POWERbot. Pull up to disconnect.

  5. EHiXDicFlGFbYjmw
    EHiXDicFlGFbYjmw
    UCyaThQKipIgotPB

    • Lift the battery from the right side, up and out of its compartment.

  6. KIVmSKb2DjDGueU4
    KIVmSKb2DjDGueU4
    YTN6yqWkgKcil5ny

    • Unscrew the two silver 1.5 cm screws on the left and right side of the battery compartment.

    • Remove the two 1.5 cm screws above the yellow sliding lock tabs.

    • Remove the two 1.2 cm screws in the brush compartment.

  7. yW5UwAWr4pESwram
    yW5UwAWr4pESwram
    iHjRSHNnZLbXbCkq

    • With moderate force, separate the silver top from the black bottom of the vacuum.

    • The cover will only separate a few inches as the two halves are connected by wires.

  8. i1nZBYhSGLNxlTJk

    • Disconnect the white and red wired connector attached to the top half of the base of the vacuum by squeezing the connector and pulling up.

  9. Y4aXE5pOvKcRbxe3

    • Pinching the top and bottom of the black wired connector, pull outward, fully detaching the top from the bottom of the device.

    how do you pinch the top and the bottom when the bottom seems to be glued to the motherboard?

    Royal Coach -

  10. ikjl6IVKZkqiOgNV

    • Detach the wide circuit connector on the left side by pinching and pressing down on the right and left side of the clip, pulling the connector out.

    • Pull the connector out by the left and right side of the white clip and not by the wires.

  11. fPCG2BuoOWmLOcSi
    fPCG2BuoOWmLOcSi
    4AOKElT2Eaa4knNy

    • Remove the four 1.2 cm screws.

    • Remove the single 0.8 cm screw.

  12. ZmjEsXvg5EYLHxsf

    • Remove the two 1.5 cm screws on the motor chamber.

  13. quDk2gUQqqTibvMW
    quDk2gUQqqTibvMW
    CC6poJhB6kBUvZld

    • Lift the motor by grabbing the body of the motor, lifting upward.

    • With the screws removed from the motor chamber the top of the motor chamber will pop open.

  14. AGJnXFwVBgMI6ESr
    AGJnXFwVBgMI6ESr
    qlRWG6eevRmTFgFr

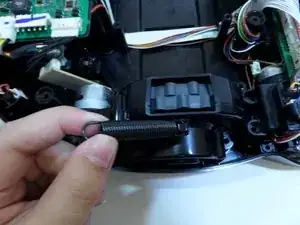

    • With the spring fully retracted, unhook the spring from the wheel casing.

  15. CD21J1YV3iU5QUoS
    CD21J1YV3iU5QUoS
    HHeHoei6RVvrPI6a

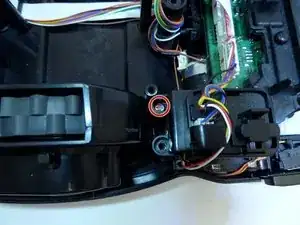

    • Remove the screw securing the black plastic piece to the right of the wheel casing.

    • This piece is not part of the wheel casing but must be unscrewed to remove the wheel casing.

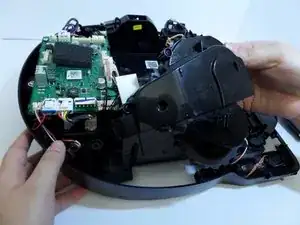

    • Lift wheel and wheel casing out of vacuum base.

  16. XitlJQ1IHeELFuQD
    XitlJQ1IHeELFuQD
    C6vC5HoWjAXesDuZ

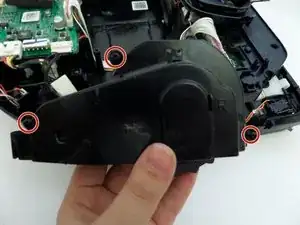

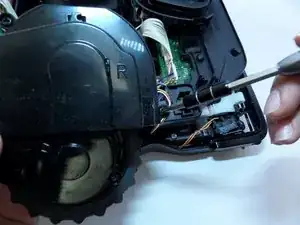

    • Remove the three screws fastening the two halves of the wheel casing together.

  17. uYDGc4BINnWbVX1R
    uYDGc4BINnWbVX1R
    K2OlnrcUMUMwkaJj

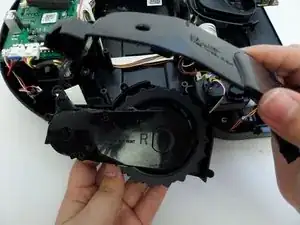

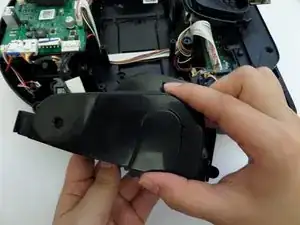

    • Separate the unsecured half of the wheel casing, exposing the wheel.

  18. aRfaOeTqGfE46I4V

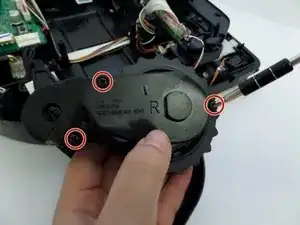

    • Remove the three screws on the remaining half of the wheel casing.

  19. tHfUZQSCJsTNNfwb
    tHfUZQSCJsTNNfwb
    XS4hxfKodUYnJlRQ
    dv1oLprJLFyGwUoK

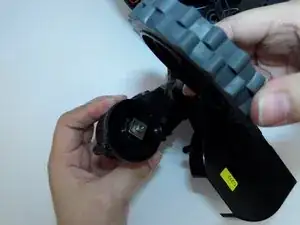

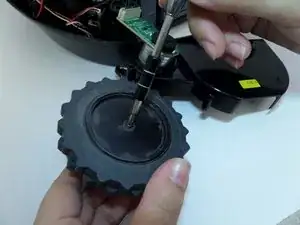

    • Unscrew the black 1 cm screw securing the center of the wheel.

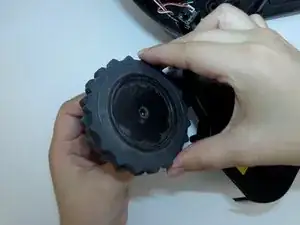

    • Remove the wheel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
