Einleitung

This guide will teach you how to access and replace/clean the powerbrush of your POWERbot. This can be done to make your POWERbot clean more efficiently.

  1. vuXnCFXF44RGhGxF
    vuXnCFXF44RGhGxF
    SMHPwGgpFcBbpow2

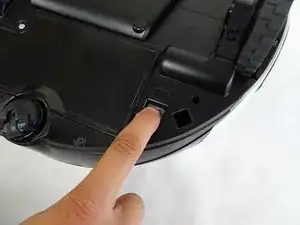

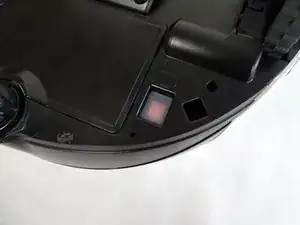

    • Turn off the emergency switch located at the bottom right of the POWERbot.

  2. 3SMesxg3LbQdbMmO
    3SMesxg3LbQdbMmO
    ddZFfYaNZI4AH5jZ

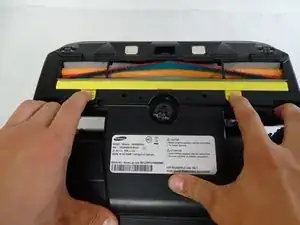

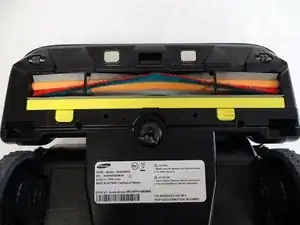

    • Press the two yellow tabs immediately below the POWERbrush.

  3. cDYIwVDTMQZclwAH
    cDYIwVDTMQZclwAH
    NAHBOUCQnECXCCOc

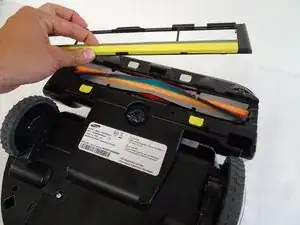

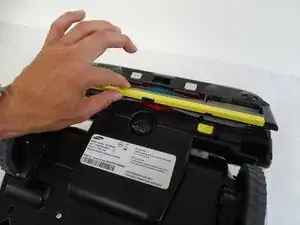

    • Lift the brush cover, indicated by the yellow strip located above the yellow tabs.

  4. RZ3j5LGmMcTwIFvc
    RZ3j5LGmMcTwIFvc
    GVMV15occqXVWVfO

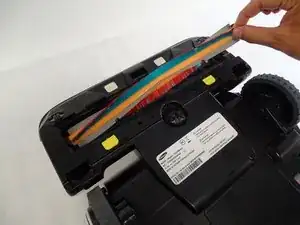

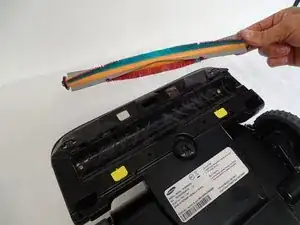

    • Remove the power brush starting with the unhinged right side of the brush.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Harrison Fugate

Mitglied seit: 24/04/17

102 Reputation

2 Kommentare

The brush is wobbly in position. Is there an insert on the right side of the brush at the bearing. This position, the bearing look too small for the opening of the cover and the upper plastic.

Charlie nguyen -

Did you lose the rubber cover/ washer that goes over the bearing? You can replace it from Samsung if you did.

hawkswhispertwh -
