Einleitung

This guide will teach you how to replace the battery of your POWERbot. This can be done to fix your POWERbot's charge retention issues.

  1. opwjViaoOxWwiNqI
    opwjViaoOxWwiNqI
    1NfkxSZi2JshoeEE

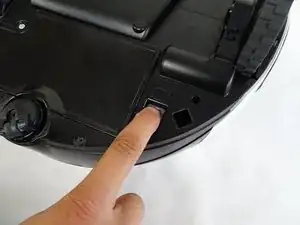

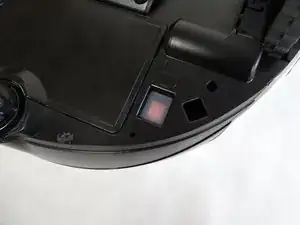

    • Turn off the emergency switch located at the bottom right of the POWERbot.

  2. HppVSRi3WptgDyoP
    HppVSRi3WptgDyoP
    NYKD2MwVWUFrbxsm

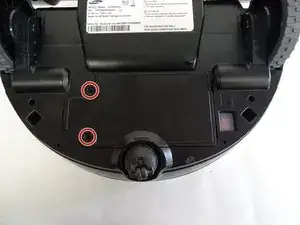

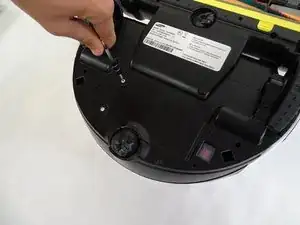

    • Unscrew the two 6mm Phillips #1 screws and remove the lid, exposing the battery.

  3. Sr4ptdwV1E2MfCK1
    Sr4ptdwV1E2MfCK1
    FcPhPKBBRG31mkQV

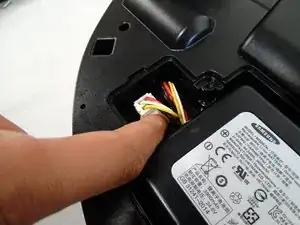

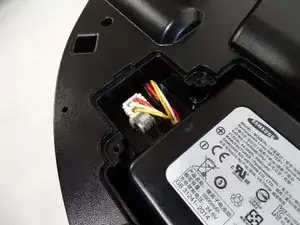

    • Follow the wires and find the small white box next to the battery.

    • On the side of the white box facing the battery, find the rigid tab.

  4. qCl3BQEEFXQ23QYp

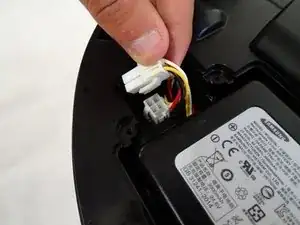

    • Push the tab inwards to the white box and pull the wires up. This will release the wires from the white box, allowing you to remove the battery.

  5. rVsdZvATcppEFsg3
    rVsdZvATcppEFsg3
    6hNlhJTBaXBeNXwa

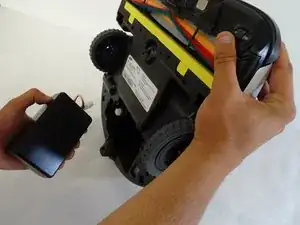

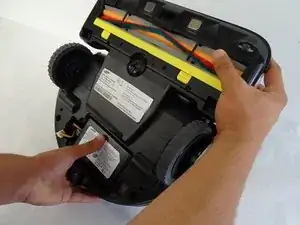

    • Remove the battery by holding the battery in place and partially righting the POWERbot so the battery falls out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
