Samsung Powerbot R9250 Battery Replacement

Geschrieben von: Ethen Sanchez
  • Kommentare: 4
Samsung Powerbot R9250 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. M2NULh2sGAQ1QqYu

    • On the bottom of the bot, locate the battery lid along the curved edge of the bot.

  2. QwDR5OGpxlKbHiwT
    QwDR5OGpxlKbHiwT
    qAl3ZCURxG3dSpgZ

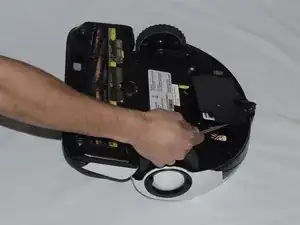

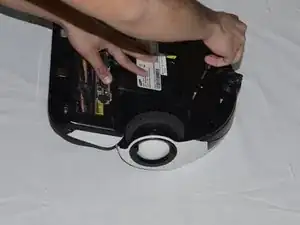

    • Unscrew each of the two screws and remove the lid to expose the battery.

  3. biMV6d11hpnGEiEC

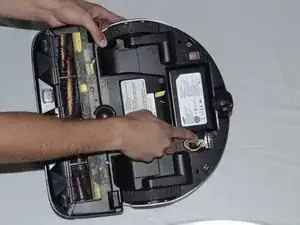

    • Follow the wires to find the small white box next to the battery.

  4. NjdEOAV5w1ThrUjg

    • On the side of the white box facing the battery, find the rigid tab.

  5. ADduGsXQg4kBX2qi
    ADduGsXQg4kBX2qi
    LSKVZXxTeRAYE2xy
    TNgX651FnlQr33hf

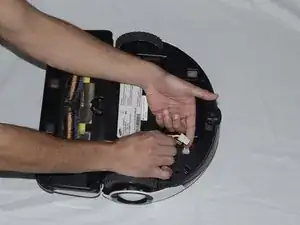

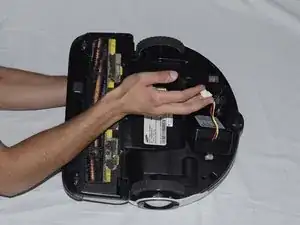

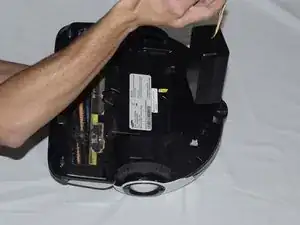

    • Push this tab into the white box, and pull the wires up. This releases the wire from the white box, allowing you to fully remove the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
