Samsung Powerbot R9250 Wheel Replacement

Geschrieben von: Ethen Sanchez
  • Kommentare: 1
Samsung Powerbot R9250 Wheel Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

  1. 6sIyGVVsXQypJxfZ

    • Flip the bot onto its side with the wheel you want to remove on top.

  2. 41IXkWQ1tNFkYQ21

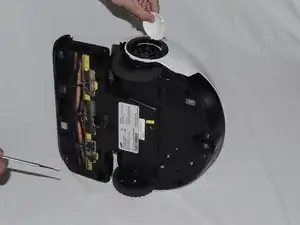

    • Remove the round white cap on the outside of the wheel.

  3. HIqln6dYTcByOSHZ

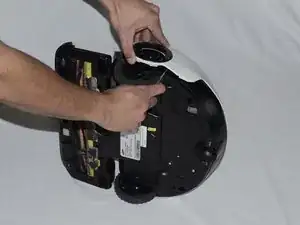

    • Next, pry and remove the white casing that runs around the back round part of the bot.

  4. xLVId1CjBWrwq3HN

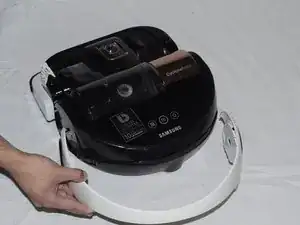

    • Continue until the whole white casing comes off.

  5. kvYDQPwDpaU1BKXD

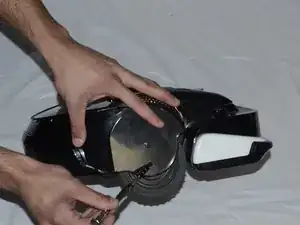

    • For the wheel you want to remove, there is a small square opening on outer black protective layer still around the wheel. Locate the screw that is inside the whole. Remove this screw.

  6. nHViHCNeKoMF5nWs
    nHViHCNeKoMF5nWs
    NTGKx4IwLbYMDCvS

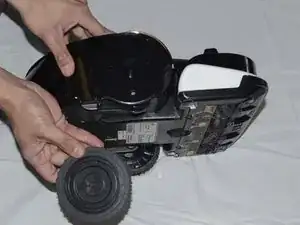

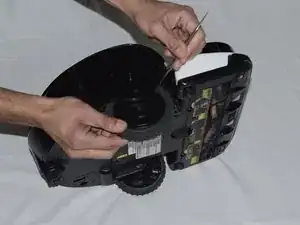

    • Pry the black protective layer away from the wheel, and pull the wheel out.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Ethen Sanchez

Mitglied seit: 25/01/17

552 Reputation

Ein Kommentar

Hi Ethen. I've recently replaced both wheel kits on the same model powerbot you are working on in this guide. When I turn it on now it becomes absolutely possessed. Goes much faster than normal and moved erratically. I am wondering if you have ever experienced this or have heard of this.

Cameron Curran -
