Einleitung
Hello everyone, in this guide I`ll be showing you how to open the laptop in order to change the keyboard.
-
-
Unscrew all the screws holding the back panel in place.
-
Remove the battery and the small panel to reveal more screws.
-

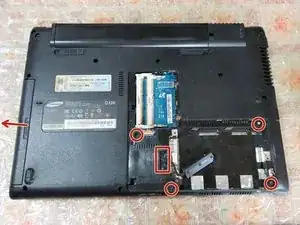

Remove the HDD and RAM.
-
Slide out the DVD drive.
-
-
-
Unscrew the heatsink and fan assembly. Disconnect the fan and remove it.
-
Remove the screws that hold the motherboard in place
-
Disconnect the touchpad, keyboard, USB module and Wi-Fi module.
-
Disconnect the power, screen and speaker connectors.
-
Unscrew the hinges and remove the display.
-
Remove the motherboard.
-
-
-

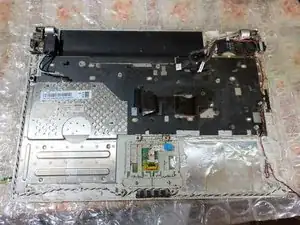

Peel and remove the black cover.
-

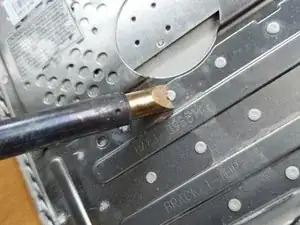

Use a soldering iron with a big tip, to melt the plastic rivets that hold the metal case for the keyboard.
-

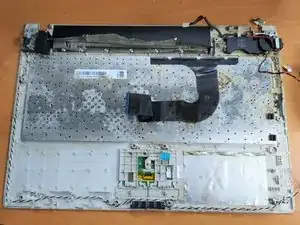

Use a prying tool the remove the metal case.
-
Remove the old keyboard, place the new one and dont forget to place the metal case on top of it.
-
You can reuse the black cover is you want.
-
To reassemble your device, follow these instructions in reverse order.
