Samsung Q330 Wi-Fi module Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

25 Minuten

Einleitung

Hello everyone, in this guide I`ll be showing you how to open the laptop in order to replace the Wi-Fi module.

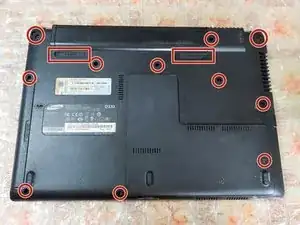

  1. vBNSJeMSAH1Qb1NR
    vBNSJeMSAH1Qb1NR
    NTNqgUBOIOZVbWHV

    • Unscrew all the screws holding the back panel in place.

    • Remove the battery and the small panel to reveal more screws.

    • Remove the HDD and RAM.

    • Slide out the DVD drive.

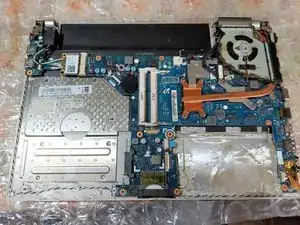

  2. tEpqmFsBmUSRZX5m
    tEpqmFsBmUSRZX5m
    3ia2ceCG2ERjXQSH

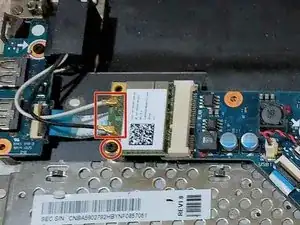

    • Carefully disconnect the antennas and unscrew it.

    • Lift it carefully and slide it out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
