Samsung RC512 HDD Replacement

Geschrieben von: Juri Ando
  • Kommentare: 0
Samsung RC512 HDD Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

8 - 15 Minuten

Einleitung

HDD may need to be replaced if it is damaged or not working properly. Also upgrading to Solid State Drive (SSD) or a bigger capacity of HDD requires this replacement guide.

  1. 65VfDSePIAcitWSe

    • Place the laptop upside down.

  2. QbwXQvpuIqqYMGbh
    QbwXQvpuIqqYMGbh
    uI2nKPhlUHUyCkFX

    • Locate two notches above the battery.

    • Slide both battery locking notches to either side to remove the battery.

    • Pull the battery out.

  3. Fb5INvqBCRvZMnD2
    Fb5INvqBCRvZMnD2
    aHhoM1ljugsTULEA
    LvwdeZxlp1xdHpxc

    • Using the Phillips #0 screwdriver, unscrew the one 5mm screw.

    • Using the blue plastic opening tools, wedge one in between the back panel and the laptop.

    • Carefully remove the back panel..

  4. uNqwSxaCxGJyYyZU

    • Carefully lift the HDD up using plastic opening tool.

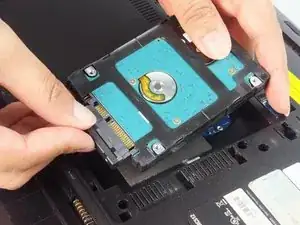

  5. ytgSAVYSZhHsif2i

    • Grab the HDD and connector.

    • Carefully pull the HDD away from the connector.

  6. H1Mql1fHM6GwMXya

    • Take out the HDD and leave the connector in the laptop

Abschluss

To reassemble your device, follow these instructions in reverse order.
