Samsung RC512 Optic Drive Replacement

Geschrieben von: Juri Ando
  • Kommentare: 0
Samsung RC512 Optic Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

8 - 15 Minuten

Einleitung

Optic drive replacement may need to be done when the drive is damaged.

  1. 65VfDSePIAcitWSe

    • Place the laptop upside down.

  2. QbwXQvpuIqqYMGbh
    QbwXQvpuIqqYMGbh
    uI2nKPhlUHUyCkFX

    • Locate two notches above the battery.

    • Slide both battery locking notches to either side to remove the battery.

    • Pull the battery out.

  3. Fb5INvqBCRvZMnD2
    Fb5INvqBCRvZMnD2
    aHhoM1ljugsTULEA
    LvwdeZxlp1xdHpxc

    • Using the Phillips #0 screwdriver, unscrew the one 5mm screw.

    • Using the blue plastic opening tools, wedge one in between the back panel and the laptop.

    • Carefully remove the back panel..

  4. qQtFPjD4SZRIjVr6

    • Remove the 4mm Phillips #0 screw using a Phillips #0 screwdriver.

  5. LvMoe1pvRPjKM2As
    LvMoe1pvRPjKM2As
    xuYFDSMvpCSpGNNK
    2ayXKhRXmLLEVJAl

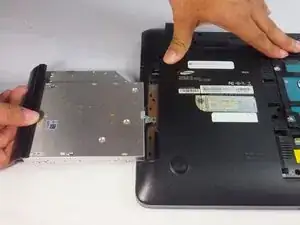

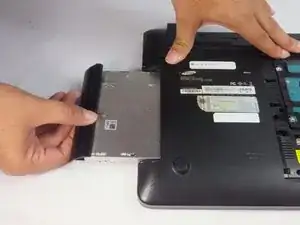

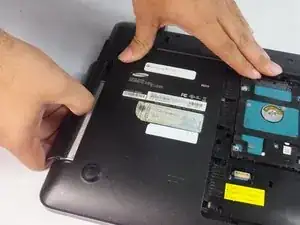

    • Use the spudger or fingers to gently pull the optical drive out.

    • Slide the optic drive away from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
