Einleitung

This guide will show how you to replace a Samsung RF263BEAESR freezer door handle. Before you start working on the refrigerator make sure to unplug it. You will need a screw driver and an Alan key to complete this guide. Some of the steps might seem hard for example in step 2 and 3, you will need to screw in the screw on the door handle. You will need to make sure the screw is set perfectly for it to go in. I have made the steps as easy as possible which will help people save a lot of time.

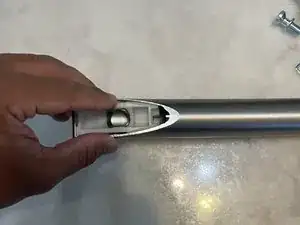

  1. SYjYQx3faI6e4nmw
    SYjYQx3faI6e4nmw

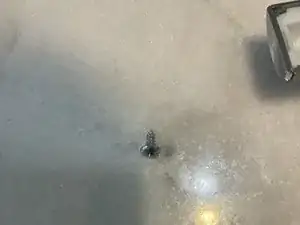

    eawKbKLIH5BCZMlk

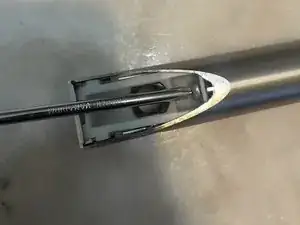

    H6JRY2dOnecuJIM2
    • Use the screwdriver to screw in the door handle opening.

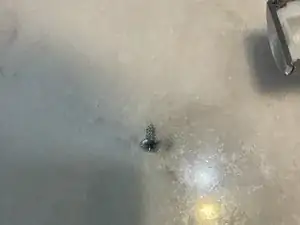

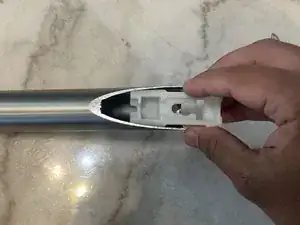

  2. ByAoeLSnbSvF2qDI
    ByAoeLSnbSvF2qDI
    YvomqeNvbBL2sClA

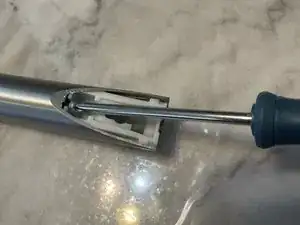

    YCwRbDIafPaxRhIo
    • Add the screw on the other side of the handle.

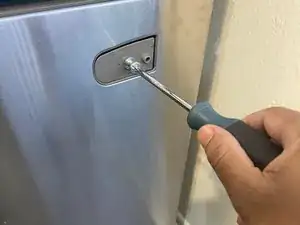

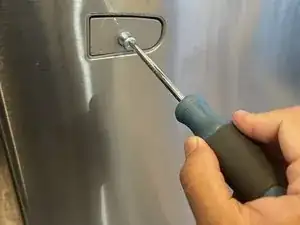

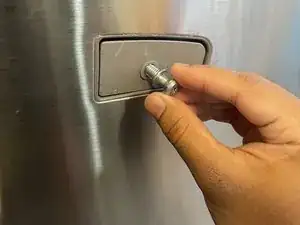

  3. MeFaUUsNtF41XtJT
    MeFaUUsNtF41XtJT
    qdUGmCtqMEQUqgry
    MN2aD4bnJLOM1UFd
    • Use the screw driver to screw in the mounting screw on both sides of the freezer.

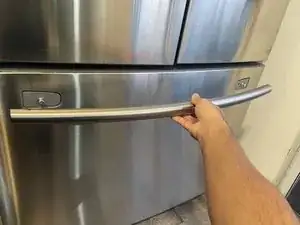

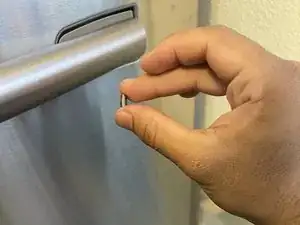

  4. DBRRpjYUmREScSvE
    DBRRpjYUmREScSvE
    bxItIh33ACVNWP4a

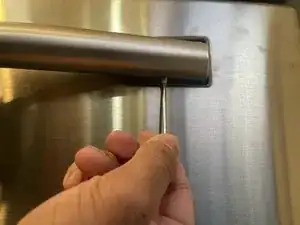

    n4HWsoDNdpPP5taC
    • Use the Allen key to screw in the small bolt on the bottom right side of the handle.

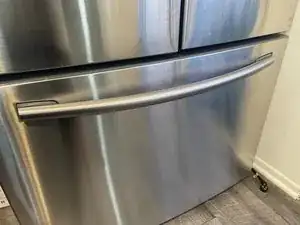

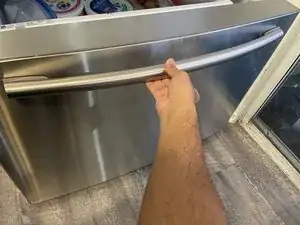

  5. dX42vOgtjRsIuoFo
    dX42vOgtjRsIuoFo

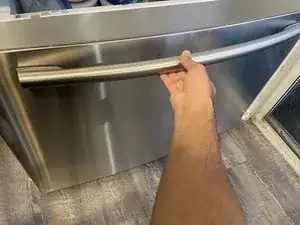

    Oh2byj5IvIvE5rEM
    5gjuGKSNOOnQiTVg
    • If all done correctly, you will have a functioning door handle.
